Brand: Alpha Wire
|
SKU:
A6316

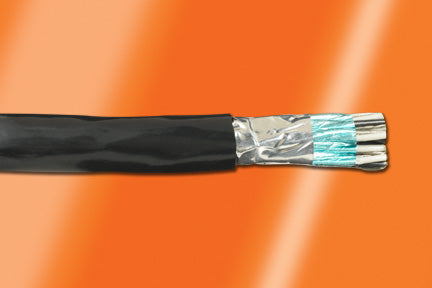

Alpha Wire 6316 SL001 | COMPOSITE CABLE, 24 AWG/2 PAIR R STRANDED TNC FPE/PVC GREY, IND AL/MY+D/W SHIELD O/A FOIL+65%, BRAID SHIELD CM AWM
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6316 SL001 | COMPOSITE CABLE, 24 AWG/2 PAIR R STRANDED T...
Regular price
$6.29
Unit price
Description
Description
Alpha Wire 6316 SL001 - CM - 24AWG/2PR STR TNC FPE/PVC GREY
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 PAIR |
|---|---|
| Conductor | 24 (7/32) AWG TC |
| Insulation | 0.019" Wall, Nom. Polyethylene, Foam |
| Color Code | Alpha Wire Color Code A |
| Pair | 2/Cond Cabled Together |
| Twists: | 6.9 Twists/foot (min) |
| Shield: | Foil Free Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing In |
| Drain Wire | 24 (7/32) AWG TC |
| Cable Assembly | 2 Components Cabled |
| Twists: | 3.7 Twists/foot (min) |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Drain Wire | 24 (7/32) AWG TC |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 75°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 29 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Mutual Capacitance | 12.5 pf/ft @1 kHz, Nominal |
| Ground Capacitance | 22 pf/ft @1 kHz, Nominal |
| Conductor DCR | 26 ?/1000ft @20°C, Nominal |
| Ind. Shield DC Resistance | 19.8 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 3.5 ?/1000ft @20°C, Nominal |
