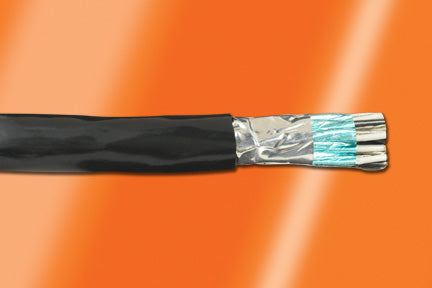

Alpha Wire 6367 SL005 | Communication and Control Cable, 24-7P Stra...
Description
Description
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Alpha Wire - 6367 SL005 - Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
Specifications
Specifications
Alpha Wire - 6367 SL005 - Specifications
| Conductor Count | 4 CONDUCTORS |
|---|---|
| Conductor Material | TINNED COPPER |
| Conductor Size | 24 AWG (AMERICAN WIRE GAUGE) |
| Conductor Type | STRANDED CONDUCTOR |
| Fire Rating | GENERAL PURPOSE |
| Insulation Material | SRPVC-SEMI-RIGID POLYVINYL CHLORIDE |
| Jacket Material | PVC-POLYVINYL CHLORIDE |
| NEC Rating | UL LISTED ART 800 |
| Screen/Shield Type | BRAID OVER FOIL SHIELD |
| Screen/Shield | YES |
| Shield Construction | OVERALL FOIL & BRAID |
| UNSPSC Code | 26121613 |
