Brand: Alpha Wire
|
SKU:
A6381

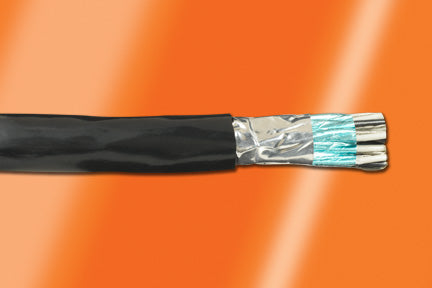

Alpha Wire 6381 SL001 | Communication-Control-Industrial-Cable, 13 Composite, 22_22 AWG, Foil Braid, 300 V, PVC Jacket, SR-PVC Insulation, 0.43 Jacket Diameter, 0.032 Jacket Thickness
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6381 SL001 | Communication-Control-Industrial-Cable, 13 ...
Regular price
$9.45
Unit price
Description
Description
25 (12.5 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil, Braid 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 12 X 1 PAIR |
|---|---|
| Conductor | 22 (7/30) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Color Code | Alpha Wire Color Code A |
| Pair | 2/Cond Cabled Together |
| Twists: | 8.0 Twists/foot (min) |
| Component 2 | 1 X 1 COND |
| Conductor | 22 (7/30) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Cable Assembly | 13 Components Cabled |
| Twists: | 2.4 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 148 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Mutual Capacitance | 35 pF/ft @1 kHz, Nominal |
| Ground Capacitance | 63 pF/ft @1 kHz, Nominal |
| Conductor DCR | 16.6 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 2.6 ?/1000ft @20°C, Nominal |
