Brand: Alpha Wire
|
SKU:
A6459

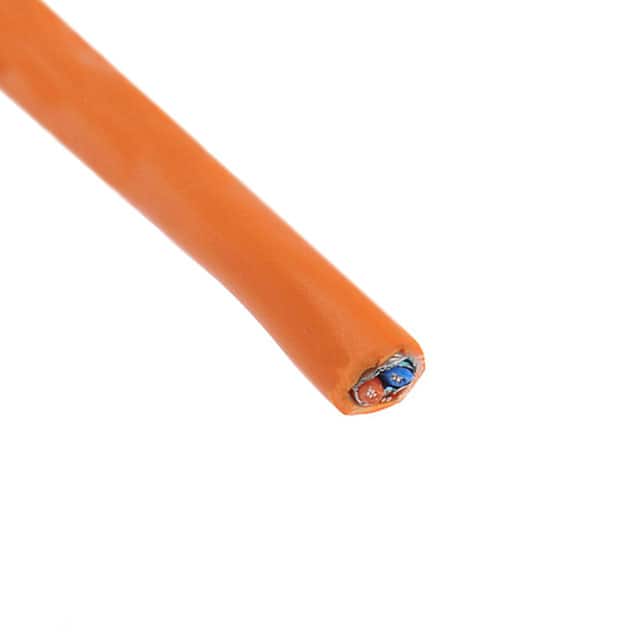

Alpha Wire 6459 OR001 | Fieldbus Cable, 18AWG, 1 Conductor, Foil, PVC, 1000 FT, Orange
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6459 OR001 | Fieldbus Cable, 18AWG, 1 Conductor, Foil, P...
Regular price
$1.46
Unit price
Description
Description
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Orange 18 AWG Foil 1000.0' (304.8m)
Key Features
- Low-loss RG-6/U 75-ohm coaxial cable
- Double braid/foil shielding for maximum signal integrity and run length
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 COND |
|---|---|
| Conductor | 18 (7/26) AWG TC |
| Insulation | 0.021" Wall, Nom. Polypropylene(PP) |
| Cable Assembly | 2 Components Cabled |
| Twists: | 4.8 Twists/foot (min) |
| Shield: | Alum/Mylar Tape, 20% Overlap, Min. |
| Foil Direction | Foil Facing In |
| Drain Wire | 20 (7/28) AWG TC |
| Over Wrap: | Polypropylene Tape, 20% Overlap, Min. |
| Jacket | 0.050" Wall, Nom.,PVC |
| Color(s) | ORANGE |
| Ripcord | 1300 Denier Nylon |
| ALPHA WIRE P/N 6459 FIELDBUS TYPE A 31.25 KB/S EXXXXX 2C18 SHIELDED(UL) 105C PLTC-ER OR ITC SUN RES OR CM OR C(UL) CM--- OIL RES CE ROHS( SEQ FOOTAGE EVERY 2 FT)[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 37 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Inductance | 0.19 µH/ft, Nominal |
| Mutual Capacitance | 24 pf/ft @1 kHz, Nominal |
| Ground Capacitance | 45 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 7.5 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 7.5 ?/1000ft @20°C, Nominal |
