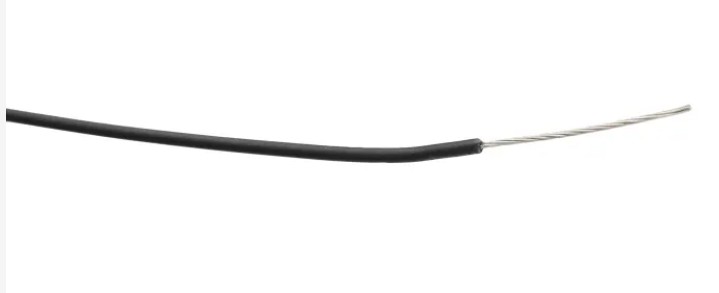

Alpha Wire 6710 BK001 | Ecowire Series Black 0.08 mm Hook Up Wire, 28 AWG, Modified Polyphenylene Ether
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6710 BK001 | Ecowire Series Black 0.08 mm Hook Up Wire, ...
Description
Description
EcoWire hook-up wires use flexible Noryl insulation to provide an environmentally friendly alternative to PVC. Noryl is a modified polyphenylene ether thermoplastic that is inherently lighter and tougher, and more flame resistance than PVC. The result is UL AWM wires that are smaller than their PVC based counterparts. The non-halogenated insulation contains no heavy metal pigments, allowing it to help manufacturers to meet Waste Electrical and Electronic Equipment (WEEE) requirements.
Alpha Wire - 6710 BK001 - Features
- Fully recyclable
- Up to 45% smaller diameter than PVC
- Up to 40% lighter than other insulation materials
- Excellent dielectric strength
- Low specific gravity
- Flame retardant to UL VW-1 rating
Specifications
Specifications
Alpha Wire - 6710 BK001 - Specifications
| Product Type | Hook Up Wire |
|---|---|
| Jacket Colour | Black |
| American Wire Gauge | 28AWG |
| Core Strands | 7 |
| Cable Length | 305m |
| Outside Diameter | 0.86mm |
| Voltage | 600V |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Tinned Copper |
| Minimum Operating Temperature | -40°C |
| Sub Type | EcoWire |
