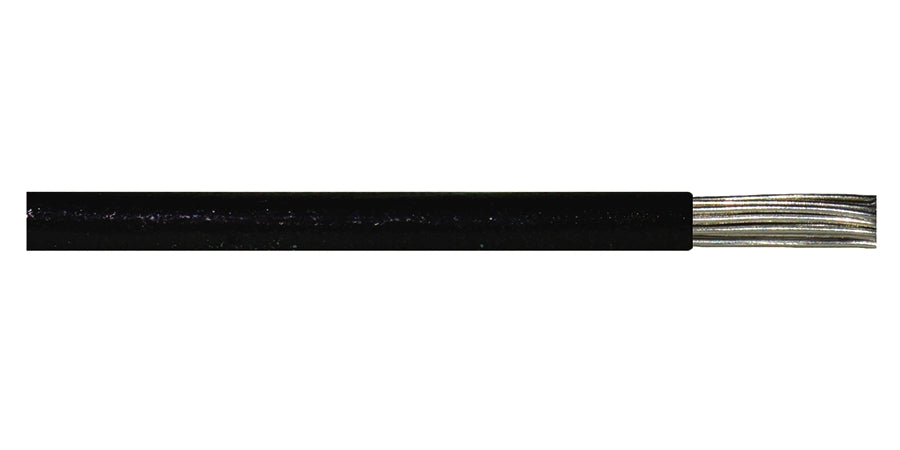

Alpha Wire 6712 BK001 | A6712-0 + -4 + -83/c Twist Black + Yellow +...
Description
Description
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable. EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.
Alpha Wire - 6712 BK001 - Features
- Better dielectric strength
- Wide temperature range that meets VW-1
- Low specific gravity
- More durable with up to 10x better abrasion and pinch resistance
- Up to 45% smaller diameter
- Up to 40% lighter
- Fully Recyclable
Specifications
Specifications
Alpha Wire - 6712 BK001 - Specifications
| Manufacturer Part Mumber | 6712 BK001 |
|---|---|
| Brand name | Alpha Wire |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Insulation Color | Black |
| Conductor Stranding | 7 Strands In Each Conductor |
| Product Type | Ul Style 10000 Series |
| Insulation Material | Mppe-modified Polyphenylene |
| Rohs Compliant | Yes |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 11028 |
| Shielded | Not Shielded |
| Unspsc Code | 26121539 |
| Conductor Strand | 7/32 |
| Conductor Material | Copper, Tinned |
| Length | 1000.0' (304.8m) |
| Voltage | 600V |
| Operating Temperature | -40°C ~ 105°C |
| Jacket Color | Black |
