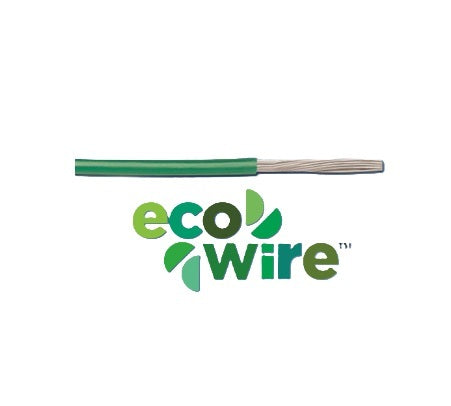

Alpha Wire 6712 RD001 | EcoWire, 24AWG, (7/32) Stranding, 1000 Ft, Red
Description
Description
40% lighter than PVC-based counterparts, while offering 10x better abrasion resistance. Plus, the non-halogenated insulation contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements Innovative EcoWire combinesincreased performance with a minimized environmental impact. EcoWire’s modified polyphenylene ether (mPPE) insulation is inherently lighter, tougher, and more durable than PVC. The result is UL AWM wire that is up to 45% smaller in diameter and
Alpha Wire - 6712 RD001 - Features
- Better dielectric strength
- Wide temperature range that meets VW-1
- Low specific gravity
- Up to 45% smaller diameter
- Up to 40% lighter
- Fully Recyclable
Specifications
Specifications
Alpha Wire - 6712 RD001 - Specifications
| Conductor Material | Tinned Copper |
|---|---|
| Conductor Size | 28 AWG (American Wire Gauge) |
| Insulation Color | Red |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Material | MPPE-Modified Polyphenylene |
| Product Type | UL Style 10000 Series |
| Shielded | Not Shielded |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 11028 |
| UNSPSC Code | 26121539 |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 3.5 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.05 ?H/ft, Nominal |
| Conductor DCR | 25 ?/1000ft @20°C, Nominal |
