Alpha Wire 6714 WH001 | EcoWire, 20 AWG, 600 V, 10/30 Stranding, mP...
Description
Description

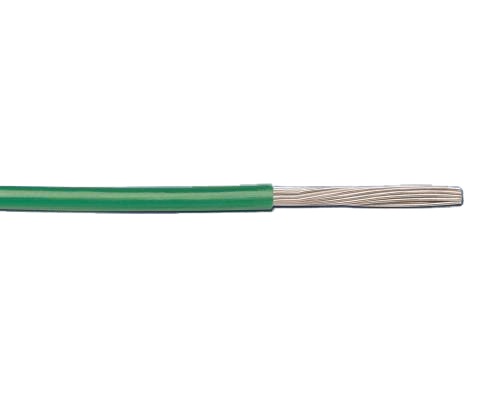

Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable. EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.
Alpha Wire - 6714 WH001 - Features
- Better dielectric strength
- Better dielectric strength
- Wide temperature range that meets VW-1
- Low specific gravity
- Up to 45% smaller diameter
- Up to 40% lighter
- Fully Recyclable
Specifications
Specifications
Alpha Wire - 6714 WH001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 20 (10/30) AWG Tinned Copper |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 7.9 Lbs, Maximum |
| Voltage Rating | 600 V |
| Inductance | 0.04 ?H/ft, Nominal |
| Conductor DCR | 10.6 ?/1000ft @20°C, Nominal |
