Brand: Alpha Wire
|
SKU:
A6715-9-DY2

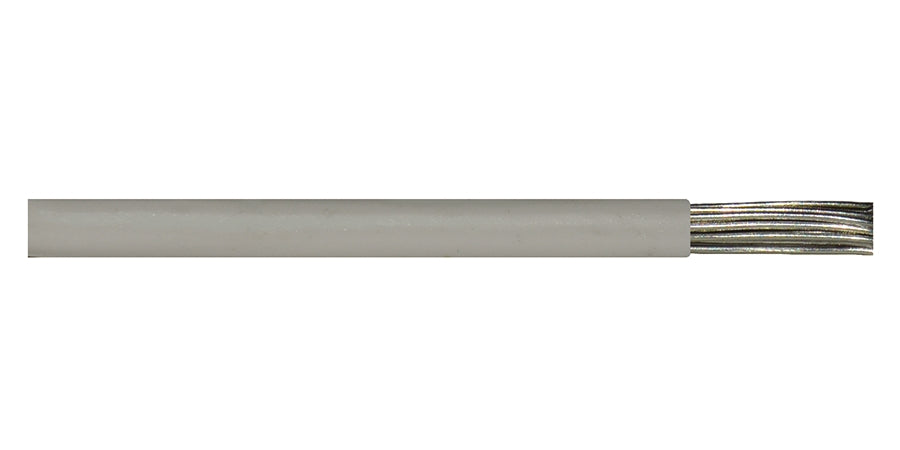

Alpha Wire 6715 WH001 | Hook-Up-Wire, EcoWire, 18 AWG, 600 V, 16/30 Stranding, mPPE Insulation, -40 to 105 Degrees, 0.067 Diameter Insulation, 0.01 Insulation Thickness
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6715 WH001 | Hook-Up-Wire, EcoWire, 18 AWG, 600 V, 16/30...
Regular price
$1.45
Unit price
Brand: Alpha Wire
|
SKU:
A6715-9-DY2
Regular price
$1.45
Unit price
Shipping calculated at checkout.
Description
Description
Alpha Wire 6715 WH001 | Hook-Up-Wire, EcoWire, 18 AWG, 600 V, 16/30 Stranding, mPPE Insulation, -40 to 105 Degrees, 0.067 Diameter Insulation, 0.01 Insulation Thickness
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. Non-halogenic and fully recyclable, EcoWire also offers improved performance characteristics over standard PVC-based insulation. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire is the solution.
Specifications
Specifications
Alpha Wire - 6715 WH001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.0095" Wall, Nom. MPPE |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 12.6 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.04 ?H/ft, Nominal |
