Description
Description

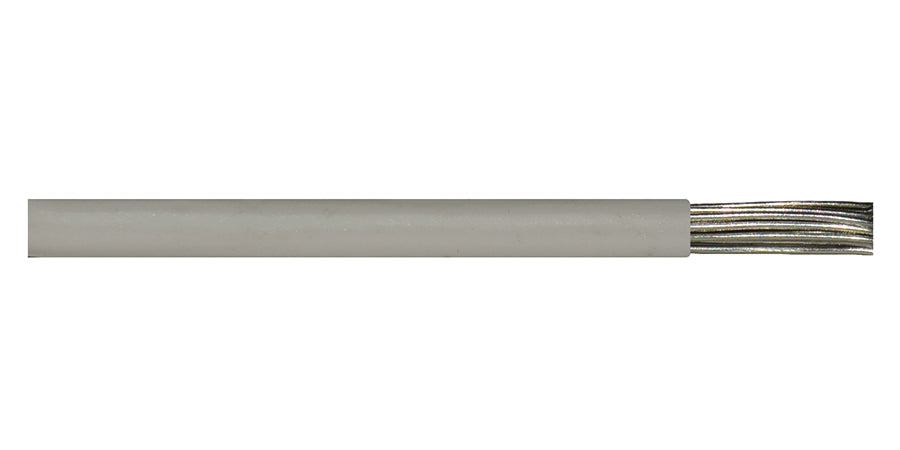

Alpha Wire 6717 WH001 UL 11028 14 41 Stranded TNC MPPE White Dye Pink-40C to +105C 600V
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. Non-halogenic and fully recyclable, EcoWire also offers improved performance characteristics over standard PVC-based insulation. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire is the solution.
Specifications
Specifications
Alpha Wire - 6717 WH001 - Specifications
| Manufacturer Part Mumber | 6717 WH001 |
|---|---|
| Brand name | Alpha Wire |
| Conductor Material | Tinned Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Insulation Color | White |
| Conductor Stranding | 41 Strands In Each Conductor |
| Product Type | Ul Style 10000 Series |
| Insulation Material | Mppe-modified Polyphenylene |
| Rohs Compliant | Yes |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 11028 |
| Shielded | Not Shielded |
| Unspsc Code | 26121539 |
| Cable Type | Hook-Up |
| Wire Gauge | 14 AWG |
| Conductor Strand | 41/30 |
| Length | 1000.0' (304.8m) |
| Voltage | 600V |
| Operating Temperature | -40°C ~ 105°C |
| Jacket Color | White |
