Alpha Wire 6718 OR001 | EcoWire 12AWG 65/30 TC Sb 1000 Feet
Regular price
$2.65
Unit price
Description
Description

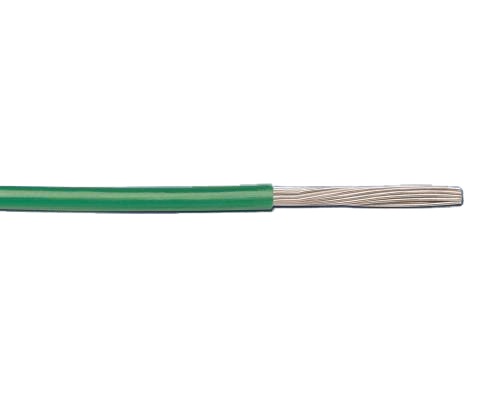

Alpha Wire 6718 OR001 | EcoWire 12AWG 65/30 TC Sb 1000 Feet
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. Non-halogenic and fully recyclable, EcoWire also offers improved performance characteristics over standard PVC-based insulation. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire is the solution.
Alpha Wire - 6718 OR001 - Features
- Better dielectric strength
- Wide temperature range that meets VW-1
- Low specific gravity
- Up to 45% smaller diameter
- Up to 40% lighter
- Fully Recyclable
Specifications
Specifications
Alpha Wire - 6718 OR001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 12 (65/30) AWG Tinned Copper |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 51 Lbs, Maximum |
| Voltage Rating | 600 V |
| Inductance | 0.03 ?H/ft, Nominal |
| Conductor DCR | 1.75 ?/1000ft @20°C, Nominal |
