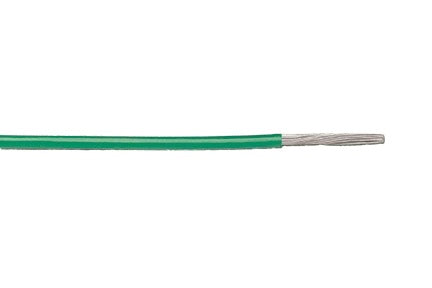

Alpha Wire 6824 WH001 | EcoWire Plus 20awg 7/28 Bc 1000 Ft.
Description
Description
Alpha Wire’s new EcoWire is the latest innovation in hook-up wire. A true engineering breakthrough, EcoWire achieves increased performance in a wire that is fully recyclable. EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.
Alpha Wire - 6824 WH001 - Features
- Better dielectric strength
- Low specific gravity
- Up to 45% smaller diameter
- Up to 40% lighter
- Fully Recyclable
Specifications
Specifications
Alpha Wire - 6824 WH001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 20 (7/28) AWG Bare Copper |
| Temperature Range | -40 to 110°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 8.7 Lbs, Maximum |
| Voltage Rating | 300 V |
| Inductance | 0.04 ?H/ft, Nominal |
| Conductor DCR | 9.5 ?/1000ft @20°C, Nominal |
