Brand: Alpha Wire
|
SKU:
A74002

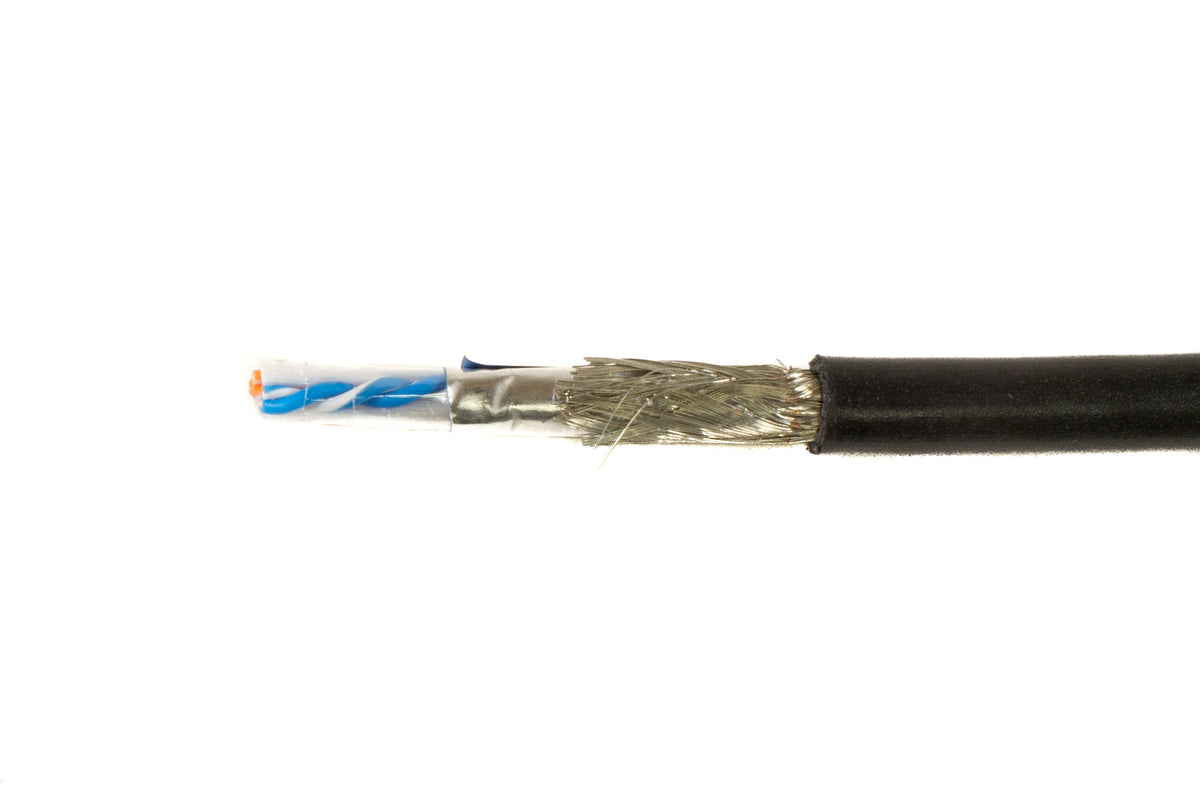

Alpha Wire 74002 BK002 | 4 (2 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 26 AWG Foil, Braid 50.00' (15.24m)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 74002 BK002 | 4 (2 Pair Twisted) Conductor Multi-Pair, C...
Regular price
$3.00
Unit price
Description
Description
4 (2 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 26 AWG Foil, Braid 500.0' (152.4m)
Key Features
- Foil/Braid, TC Braid, & Unshielded options
- PO, PP, & PE (Foam Skin) Insulation
- Tinned Copper, Bare Copper, & Copper Alloy Conductors
- Black & Green (74001 & 74005) Jacket Color Options
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 PAIR |
|---|---|
| Conductor | 26 (7/3AWG Bare Copper |
| Insulation | 0.010" Wall, Nom. Polypropylene(PP) |
| Pair | 2/Cond Cabled Together |
| Twists: | Staggered Lays |
| Cable Assembly | 2 Components Cabled |
| Twists: | 6.9 Twists/foot (min) |
| Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Braid | Tinned Copper,80% Coverage, Min. |
| Jacket | 0.031" Wall, Nom., TPU (ZH) |
| Color(s) | BLACK |
| Ripcord | 1 End 810 Denier Nylon |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 80°C |
| Bend Radius | 5X Cable Diameter(static), 10X Cable Diameter(dynamic) |
| Pull Tension | 9 Lbs, Maximum |
| Dielectric strength cond. – cond. (2 sec.) | 2.5kVdc |
| D.C. resistance conductor | < 140 ?/km |
| Resistance unbalance | < 2% |
| D.C. insulation resistance | > 5000 M?.km |
| Mutual capacitance | < 56 nF/km |
| Capacitance unbalance | < 1600 pF/km |
