Brand: Alpha Wire
|
SKU:
A74007

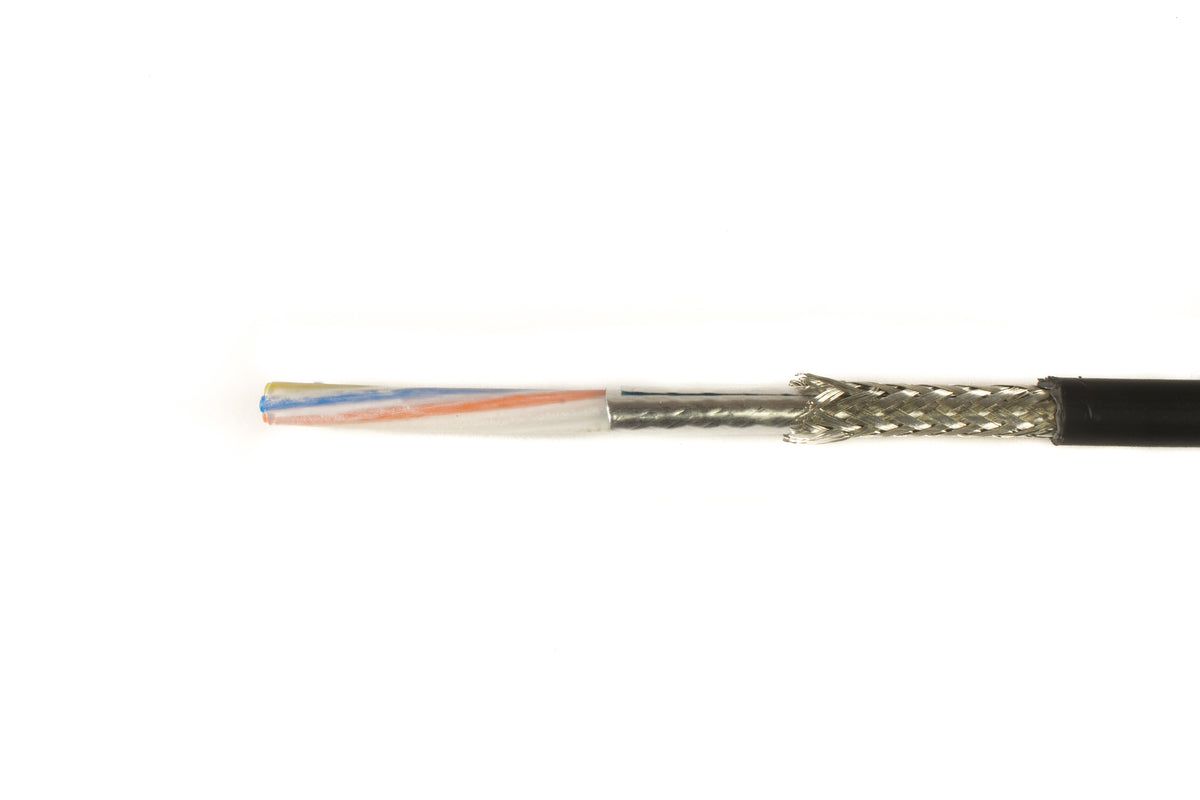

Alpha Wire 74007 BK002 | 4 Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 10.00' (3.05m)
Regular price
$4.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 74007 BK002 | 4 Conductor Multi-Conductor Cable Black 22...
Regular price
$4.59
Unit price
Description
Description
4 Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 500.0' (152.4m)
Key Features
- Foil/Braid, TC Braid, & Unshielded options
- PO, PP, & PE (Foam Skin) Insulation
- Tinned Copper, Bare Copper, & Copper Alloy Conductors
- Black & Green (74001 & 74005) Jacket Color Options
Specifications
Specifications
Specifications
| Component 1 | 1 X 4 COND |
|---|---|
| Conductor | 22 (19/3AWG Tinned Copper |
| Insulation | 0.015" Wall, Nom. Polyolefin |
| Cabling | 4 COND Cabled |
| Twists: | 6.0 Twists/foot (min) |
| Jacket | 0.009" Wall, Nom., LSZH |
| Color(s) | WHITE |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Braid | Tinned Copper,80% Coverage, Min. |
| Jacket | 0.035" Wall, Nom., TPU (ZH) |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N 74007 4C 22 AWG INDUSTRIAL ETHERNET PROFINET TYPE C SHIELDED CAT5E CE ROHS (SEQ FOOTAGE) * = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C |
| Bend Radius | 5X Cable Diameter(static), 10X Cable Diameter(dynamic) |
| Pull Tension | 27 Lbs, Maximum |
| Test voltage wire-wire/wire-screen | 2.5kVdc |
| Maximum conductor DC-resistance @ 20°C | 57.1 ?/km |
| Transfer impedance @ 10MHz | < 10 mOhm/m |
| Nom. velocity of propagation | 66 % |
| Delay | < 5.3 ns/m |
| Impedance @ 1 – 100 MHz | 100 +/- 15 ? |
