Brand: Alpha Wire
|
SKU:
A74009

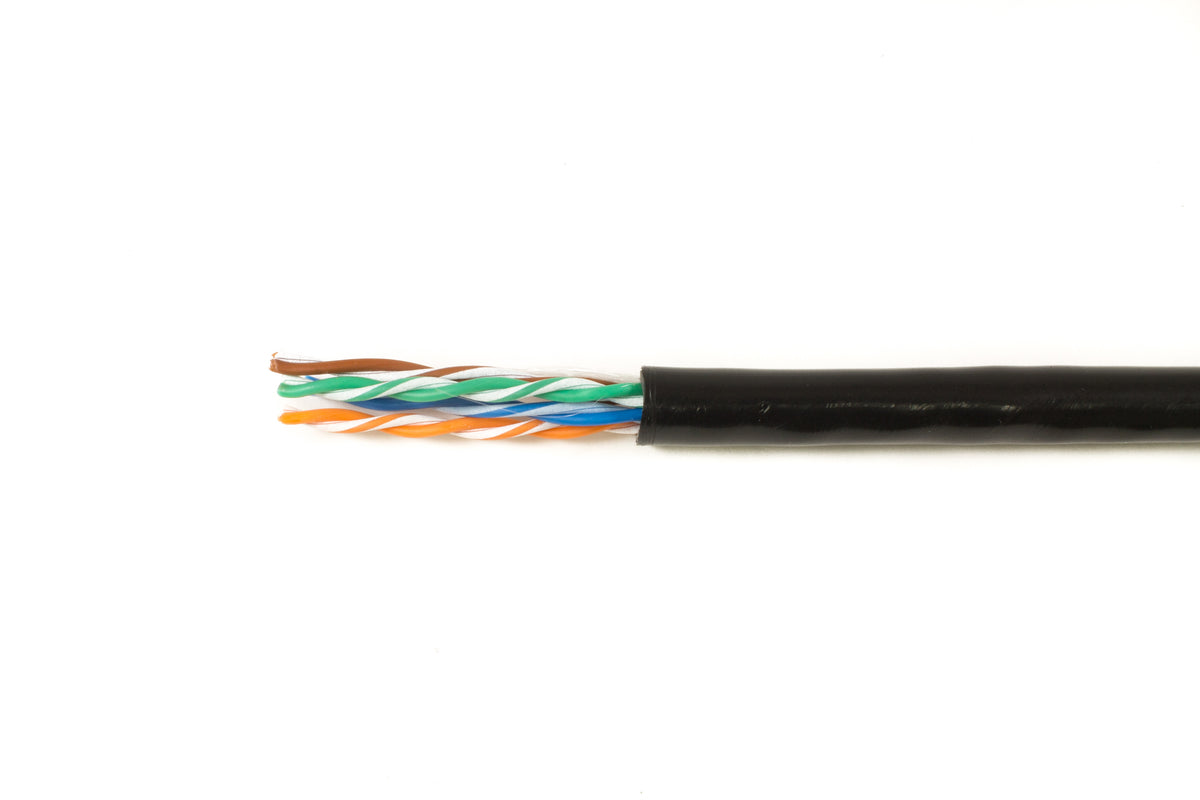

Alpha Wire 74009 BK002 | 8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 22 AWG - 10.00' (3.05m)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 74009 BK002 | 8 (4 Pair Twisted) Conductor Multi-Pair, C...
Regular price
$3.00
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 22 AWG 500.0' (152.4m)
Key Features
- Foil/Braid, TC Braid, & Unshielded options
- PO, PP, & PE (Foam Skin) Insulation
- Tinned Copper, Bare Copper, & Copper Alloy Conductors
- Black & Green (74001 & 74005) Jacket Color Options
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 PAIR |
|---|---|
| Conductor | 22 (SOLID) AWG Bare Copper |
| Insulation | 0.011" Wall, Nom. Polyolefin |
| Pair | 2/Cond Cabled Together |
| Twists: | Staggered Lays |
| Cable Assembly | 4 Components Cabled |
| Twists: | 4.0 Twists/foot (min) |
| Jacket | 0.043" Wall, Nom.,PVC |
| Color(s) | BLACK |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 74009 4PR 22 AWG VERIFIED (UL) CAT 5E PLTC OR CMR-CMX OUTDOOR OR C(UL) CMR --- ISO/IEC 11801 CAT 5E SUN RES OIL RES --- US PATENT 6273977 CE ROHS (2 FT, 7 DIGIT SEQUENTIAL NUMBER) FT [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] * = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -25 to 75°C |
| Bend Radius | 4X Cable Diameter |
| Pull Tension | 40 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Cable Weight | 30 Lbs/1000Ft |
| Voltage Rating | 300 VRMS |
| Characteristic Impedance | 100 ? +/- 15 |
| Mutual Capacitance | 15 pF/ft @1 kHz, Nominal |
| Velocity of Propagation | 70 % |
| Propagation Delay | 510 nS/100m, Maximum |
