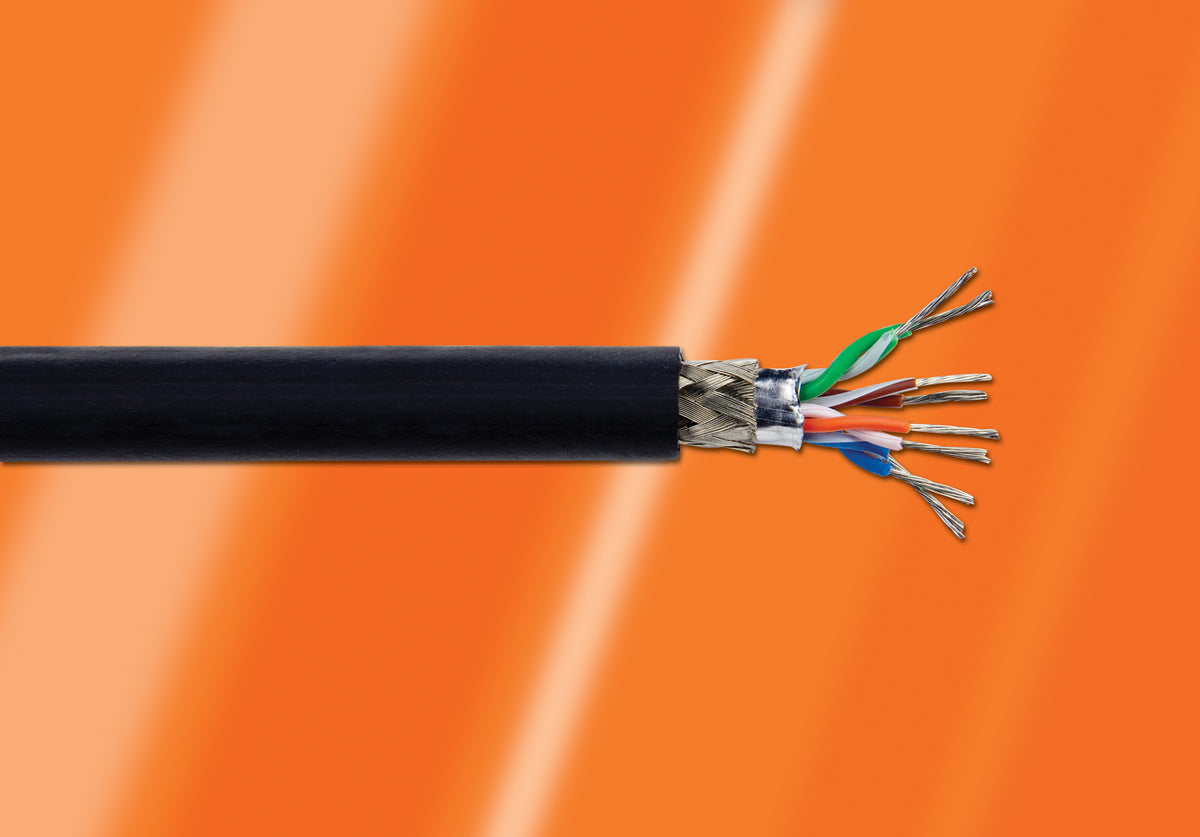

Alpha Wire 76010 BK001 - INDUST ETHERNET - 24-4P SOL BC CAT5E PP
Regular price
$3.00
Unit price
Brand: Alpha Wire
|
SKU:
A76010
Regular price
$3.00
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 1000.0' (304.8m)
Key Features
- -50°C to 75°C (PP core) and 105°C (FEP core)
- 4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
- Meets ANSI/TIA-568-C.2 Cat 5e requirements
- UL Type CMR and suitable for use in NFPA 79 applications*
- Sunlight and abrasion resistant
- High-performance TPE jacket provides three times the low temperature flexibility of PVC
- Unshielded, foil shielded, or Supra-Shield foil + braid for best EMI protection
- https://www.alldataresource.com/assets/images_commscope/pdf.jpg
- Alpha Wire 76010_BK001 Product Specifications
- https://www.alldataresource.com/assets/images_alphawire/alpha_wire_76010_BK001_product_specifications.pdf
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 PAIR |
|---|---|
| Conductor | 24 (SOLID) AWG BC |
| Insulation | 0.008" Wall, Nom. Polypropylene (PP) |
| Pair | 2/Cond Cabled Together |
| Lay Length: | Various Lay |
| Cable Assembly | 4 Components Bunch Cabled |
| Twists: | 2.4 Twists/foot |
| Jacket | 0.035" Wall, Nom.,TPE |
| Color(s) | BLACK, RED |
| Ripcord | Nylon |
| ALPHA WIRE-* P/N 76010 4PR 24 AWG XTRAGUARD(R) INDUSTRIAL ETHERNET (UL) C(UL) TYPE CMR 75C FT4 ANSI/TIA-568-C.2 CAT5E VERIFIED CE ROHS (SEQUENTIAL FOOTAGE MARKING) * = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -50 to 75°C |
| Bend Radius | 4X Cable Diameter |
| Pull Tension | 25.0 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Characteristic Impedance | 100 ? +/- 15 |
| Mutual Capacitance | 5.6 nf/100m Max |
| Velocity of Propagation | 70 % Nom. |
| Conductor DCR | 9.38 ?/100m @20°C, Max |
| Skew | 45 ns/100m, Max |
| Pair to Ground Unbalance | 330 pf/100m, Max |
