Brand: Alpha Wire
|
SKU:
A76022

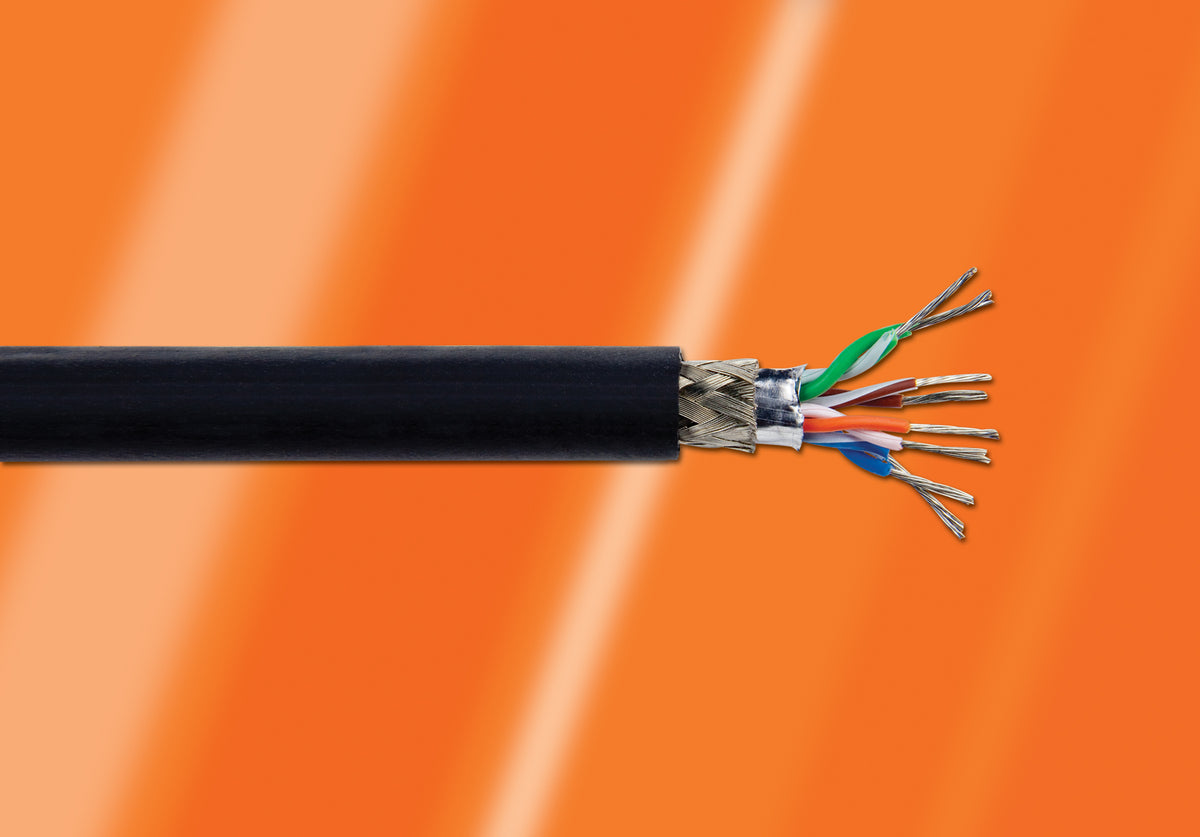

Alpha Wire 76022 BK001 - INDUST ETHERNET - 24-4P STR BC CAT5E PP FOIL +
Regular price
$7.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 76022 BK001 - INDUST ETHERNET - 24-4P STR BC CAT5E PP FO...
Regular price
$7.08
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil, Braid 1000.0' (304.8m)
Key Features
- -50°C to 75°C (PP core) and 105°C (FEP core)
- 4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
- Meets ANSI/TIA-568-C.2 Cat 5e requirements
- UL Type CMR and suitable for use in NFPA 79 applications*
- Sunlight and abrasion resistant
- High-performance TPE jacket provides three times the low temperature flexibility of PVC
- Unshielded, foil shielded, or Supra-Shield foil + braid for best EMI protection
- https://www.alldataresource.com/assets/images_commscope/pdf.jpg
- Alpha Wire 76022_BK001 Product Specifications
- https://www.alldataresource.com/assets/images_alphawire/alpha_wire_76022_BK001_product_specifications.pdf
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 PAIR |
|---|---|
| Conductor | 24 (7/32) AWG BC |
| Insulation | 0.014" Wall, Nom. Polypropylene (PP) |
| Pair | 2/Cond Cabled Together |
| Lay Length: | Various Lay |
| Cable Assembly | 4 Components Bunch Cabled |
| Twists: | 3.0 Twists/foot |
| Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 24 (SOLID) AWG TC |
| Braid | TC,70% Coverage, Min. |
| Jacket | 0.035" Wall, Nom.,TPE |
| Color(s) | BLACK, RED |
| Ripcord | Nylon |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -50 to 75°C |
| Bend Radius | 8X Cable Diameter |
| Pull Tension | 37.0 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Characteristic Impedance | 100 ? +/- 15 |
| Mutual Capacitance | 5.6 nf/100m Max |
| Velocity of Propagation | 70 % Nom. |
| Conductor DCR | 9.38 ?/100m @20°C, Max |
| Skew | 45 ns/100m, Max |
| Pair to Ground Unbalance | 330 pf/100m, Max |
