Brand: Alpha Wire
|
SKU:
A77001

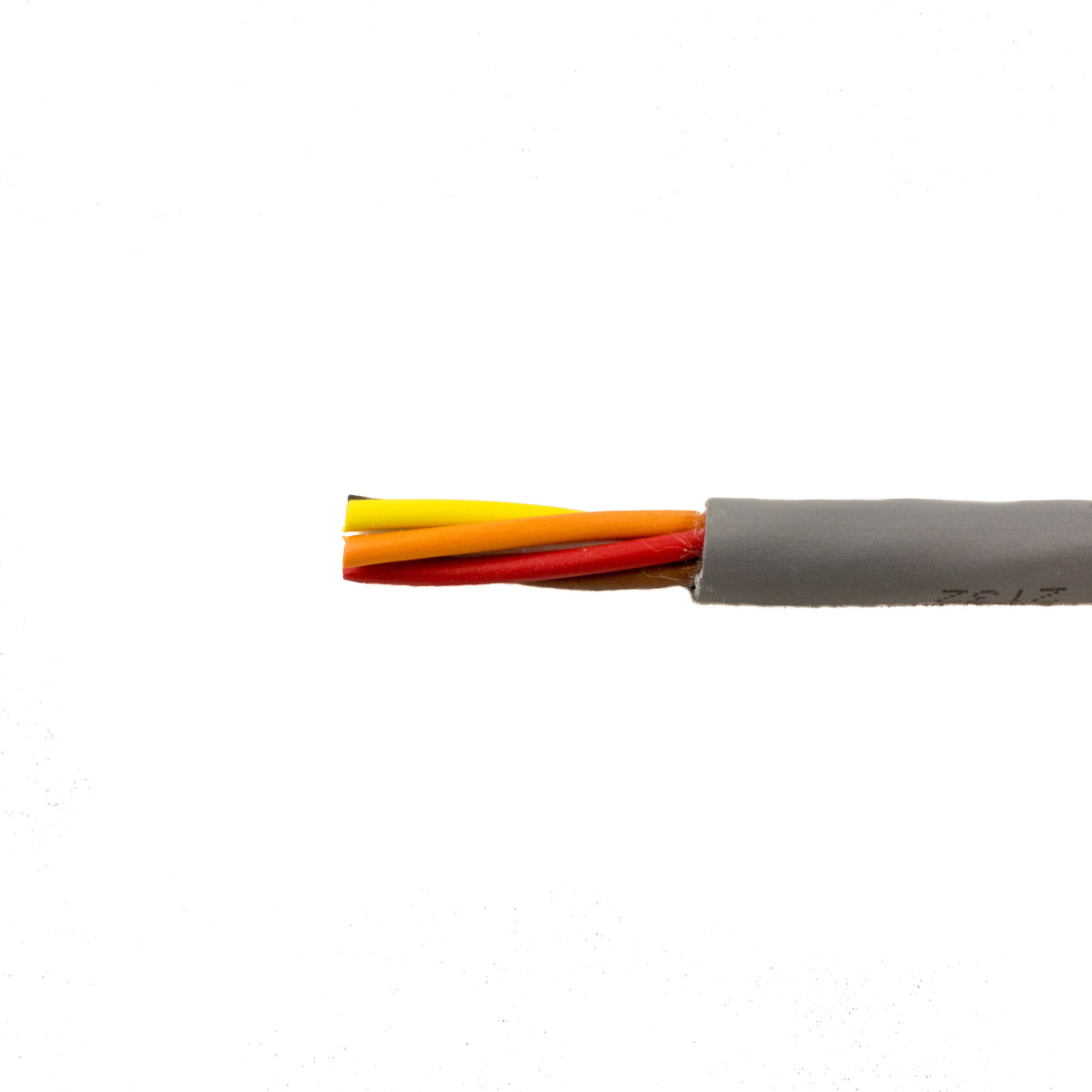

Alpha Wire 77001 SL001 | ECOCABLE, 24AWG, 2 Conductor, (7/32) Stranding, Unshielded, MPPE, 1000 FT, Slate
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 77001 SL001 | ECOCABLE, 24AWG, 2 Conductor, (7/32) Stran...
Regular price
$3.00
Unit price
Description
Description
2 Conductor Multi-Conductor Cable Slate 24 AWG 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 COND |
|---|---|
| Conductor | 24 (7/32) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. MPPE |
| Color Code | Alpha Wire Color Code E |
| Cable Assembly | 2 Components Cabled |
| Twists: | 12.0 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Jacket | 0.032" Wall, Nom.,MPPE |
| Color(s) | SLATE |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 77001 2C 24 AWG ECOCABLE(R) RU AWM 21915 105C 600VC(RU) AWM I/II A/B FT2 600V 105CCE ROHS (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -50 to 105°C |
| Bend Radius | 6X Cable Diameter |
| Pull Tension | 7 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Characteristic Impedance | 104 ? |
| Inductance | 0.19 µH/ft, Nominal |
| Conductor DCR | 26 ?/1000ft @20°C, Nominal |
