Brand: Alpha Wire
|
SKU:
A78021

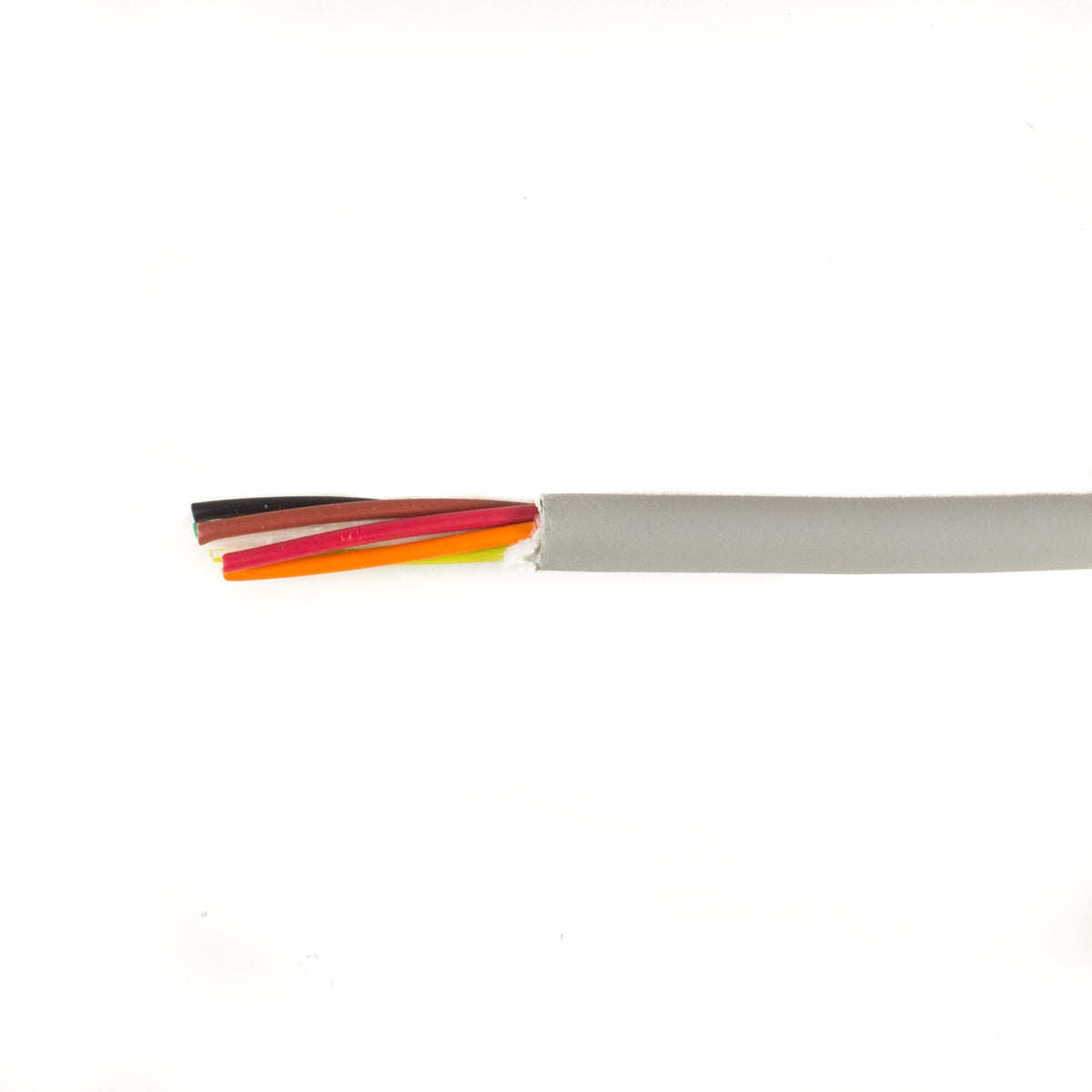

Alpha Wire 78021 SL001 | Multiconductor Cable, ECOCABLE Mini, ECOGEN, 26 AWG, 15 Conductors, 300 V, MPPE (modified polyphenylene ether thermoplastic), Unshielded
Regular price
$7.59
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 78021 SL001 | Multiconductor Cable, ECOCABLE Mini, ECOGE...
Regular price
$7.59
Unit price
Brand: Alpha Wire
|
SKU:
A78021
Regular price
$7.59
Unit price
Description
Description
15 Conductor Multi-Conductor Cable Slate 26 AWG 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 15 X 1 COND |
|---|---|
| Conductor | 26 (19/38) AWG Tinned Copper |
| Insulation | 0.007" Wall, Nom. Modified Polyphenylene Ether-PE |
| Color Code | Alpha Wire Color Code E |
| Cable Assembly | 15 Components Cabled |
| Twists: | 5.3 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Jacket | 0.015" Wall, Nom.,Modified Polyphenylene Ether-PE |
| Color(s) | SLATE |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 78021 15C 26 AWG ECOCABLE(R) MINI RU AWM 21460 80C 300V VW-1C(RU) AWM I A/B FT1 80C 300VCE ROHS (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 36 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 38 ?/1000ft @20°C, Nominal |
