Alpha Wire 78028 SL001 | Ecocable Mini, 24AEG, 8 Conductor, (19/36)...
Regular price
$4.34
Unit price
Description
Description

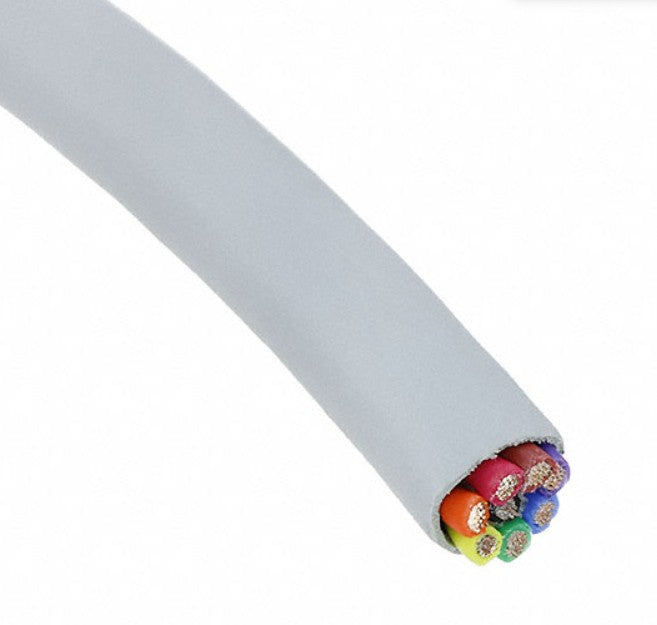

Alpha Wire 78028 SL001 | Ecocable Mini, 24AEG, 8 Conductor, (19/36) Stranding, Unshielded, MPPE, 1000 Feet, Slate
EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.
Alpha Wire - 78028 SL001 - Features
- Recyclable mPPE jacket and insulation
- -40°C to +80°C temperature range
- RoHS and REACH Compliant
- Suitable for use in NFPA 79 applications
- Over 250 Standard Constructions available
- Up to 32% smaller than PVC
- Up to 44% lighter than PVC
- Up to 92% lower outgassing than standard 300 V PVC cables
- Halogen Free
Specifications
Specifications
Alpha Wire - 78028 SL001 - Specifications
| Part Status | Active |
|---|---|
| Cable Type | Multi-Conductor |
| Number of Conductors | 8 |
| Wire Gauge | 24 AWG |
| Conductor Strand | 19/36 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Polyphenylene Ether, Modified (mPPE) |
| Jacket (Insulation) Diameter | 0.164" (4.17mm) |
| Length | 1000.0' (304.8m) |
| Jacket Color | Slate |
| Ratings | ISO 10993, UL Style 21460 |
| Features | Biological Compatibility, Rip Cord |
| Voltage | 300 V |
| Operating Temperature | -40°C ~ 80°C |
| Component 1 | 8 X 1 COND |
| Conductor | 24 (19/36) AWG Tinned Copper |
| Cable Assembly | 8 Components Cabled |
| Twists: | 6.9 Twists/foot (min) |
