Brand: Alpha Wire
|
SKU:
A78188-FT

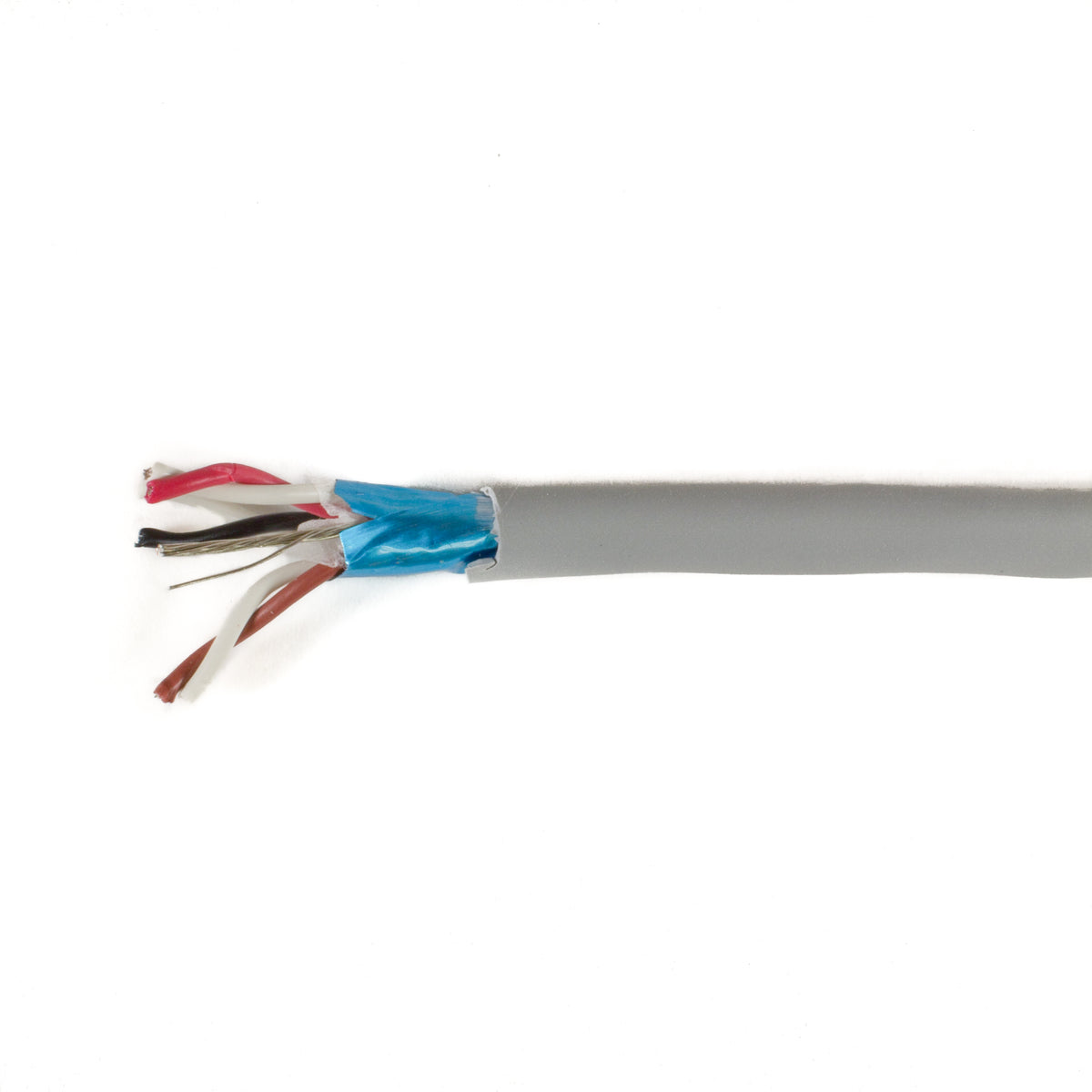

Alpha Wire 78188 SL005 | Eco EcoCable Mini 22AWG 8PR 300V Foil mPPE 100 ft.
Regular price
$13.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 78188 SL005 | Eco EcoCable Mini 22AWG 8PR 300V Foil mPPE...
Regular price
$13.19
Unit price
Description
Description
16 (8 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 100.0' (30.5m)
Specifications
Specifications
Specifications
| Component 1 | 8 X 1 PAIR |
|---|---|
| Conductor | 22 (19/3AWG Tinned Copper |
| Insulation | 0.007" Wall, Nom. Modified Polyphenylene Ether-PE |
| Color Code | Alpha Wire Color Code B |
| Pair | 2/Cond Cabled Together |
| Twists: | 9.6 Twists/foot (min) |
| Cable Assembly | 8 Components Cabled |
| Twists: | 3.2 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing In |
| Drain Wire | 22 (7/30) AWG Tinned Copper |
| Jacket | 0.015" Wall, Nom.,Modified Polyphenylene Ether-PE |
| Color(s) | SLATE |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 100 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Ground Capacitance | 39 pF/ft @1 kHz, Nominal |
| Characteristic Impedance | 76 ? |
| Inductance | 0.16 µH/ft, Nominal |
| Conductor DCR | 15.4 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 10.3 ?/1000ft @20°C, Nominal |
