Brand: Alpha Wire
|
SKU:
80038-100-QTS

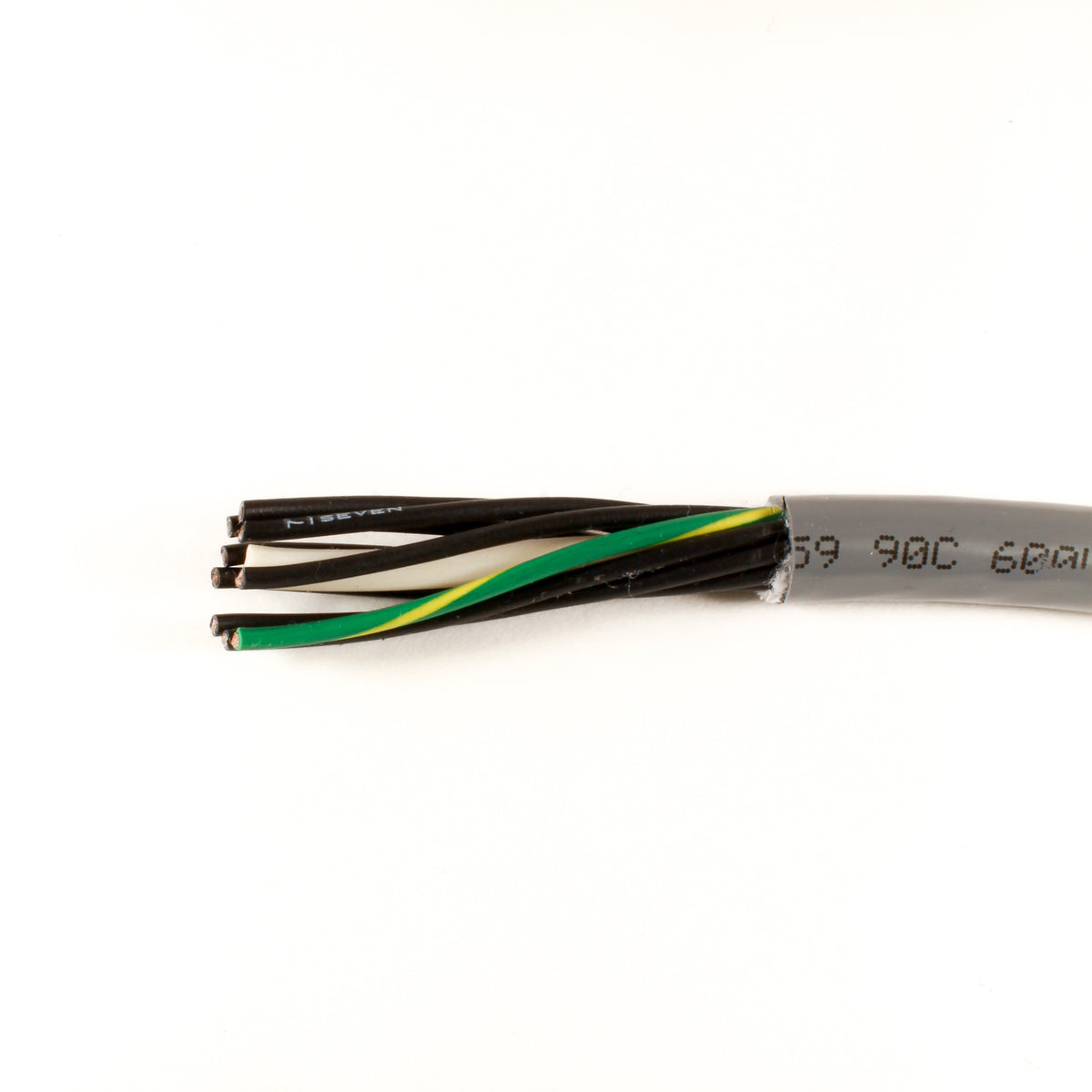

Alpha Wire 80038 SL005 | 12 Conductor Multi-Conductor Cable Slate 18 AWG 100.0' (30.5m)
Regular price
$12.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 80038 SL005 | 12 Conductor Multi-Conductor Cable Slate 1...
Regular price
$12.39
Unit price
Brand: Alpha Wire
|
SKU:
80038-100-QTS
Regular price
$12.39
Unit price
Shipping calculated at checkout.
Description
Description
12 Conductor Multi-Conductor Cable Slate 18 AWG 100.0' (30.5m)
Key Features
- Zero Halogen, contains no heavy metals or phthalates
- PUR jacket, mPPE insulation
- 8M+ flex life cycles
- finely stranded tinned copper conductors, class 6
- Up to 40% smaller and 44% lighter than standard 600V PUR continuous flex cables
- UL Oil Res I
- UL Sunlight Resistant
- Operating temperature -50C to +90C (static) and -40C to +80C (dynamic)
- Bend Radius 4X (static) and 6X (dynamic)
Specifications
Specifications
Specifications
| Component 1 | 12 X 1 COND |
|---|---|
| Conductor | 18 (41/3AWG Tinned Copper |
| Insulation | 0.012" Wall, Nom. MPPE |
| ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING ANDINVERTED | |
| Cable Assembly | 12 Components Cabled |
| Twists: | 3.7 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Jacket | 0.032" Wall, Nom.,Polyurethane, Zero Halogen (ZH) |
| Color(s) | SLATE |
| ALPHA WIRE-* P/N 80038 12C 18 AWG RU AWM STYLE 21959 90C 600V SUN RES 60C OIL ORCRU AWM I/II A/B 90C 600V FT2 --- IEC EN 60332-1/2CE ROHS (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -50 to 90°C(static), -40 to 80°C (dynamic) |
| Bend Radius | 4X Cable Diameter(static), 6X Cable Diameter(dynamic) |
| Pull Tension | 153 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 17.7 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.17 ?H/ft, Nominal |
| Conductor DCR | 7 ?/1000ft @20°C, Nominal |
