Brand: Alpha Wire
|
SKU:
A85243CY

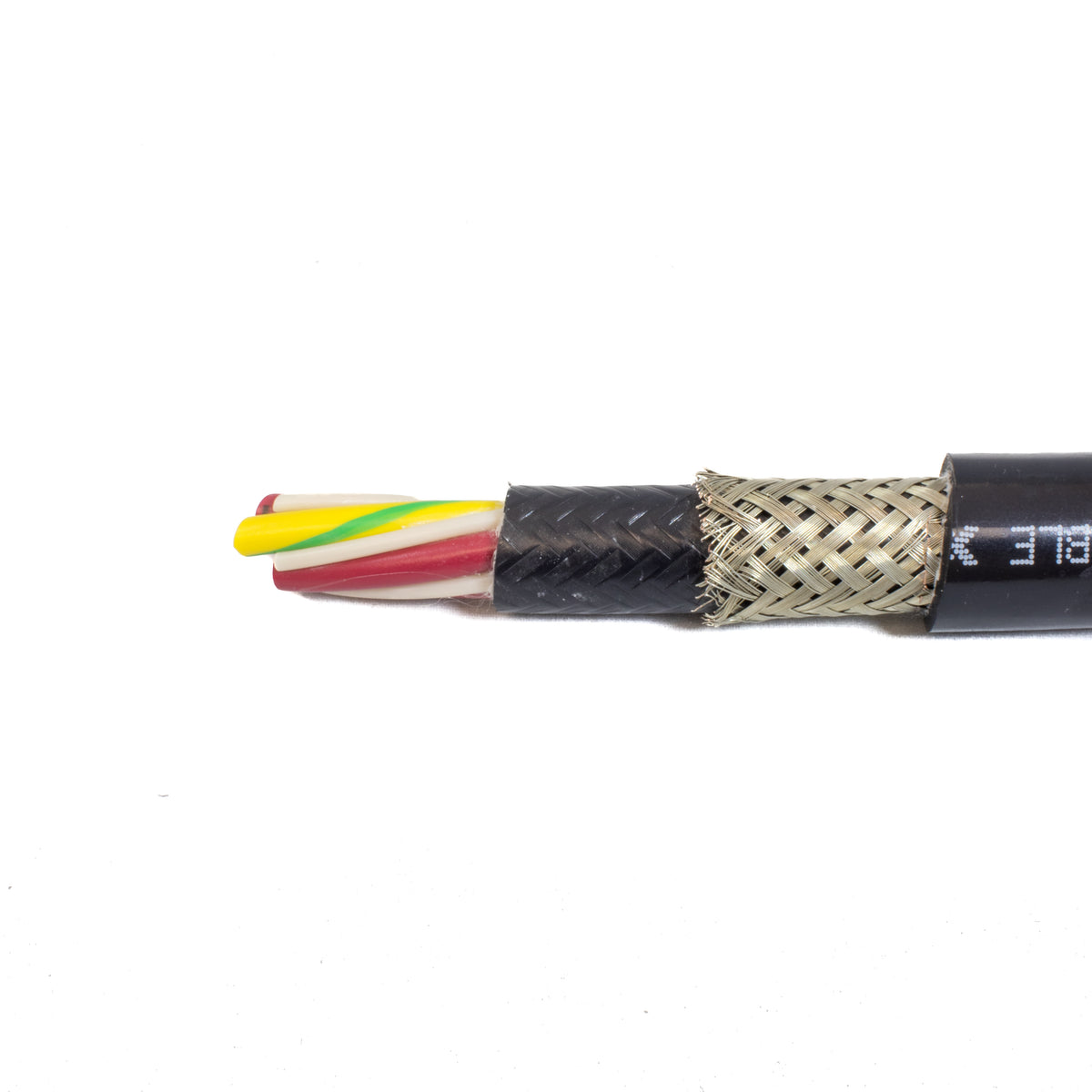

Alpha Wire 85243CY BK001 - XTRAGUARD FLEX - 24-3C STR TC SRPVC INSUL
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 85243CY BK001 - XTRAGUARD FLEX - 24-3C STR TC SRPVC INSUL
Regular price
$5.39
Unit price
Description
Description
3 Conductor Multi-Conductor Cable Black 24 AWG Braid 1000.0' (304.8m)
Key Features
- Long-lasting flex cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
- Rated for up to 14 million flex life cycles (85000 series), up to 6 Million flex life cycles (86000 series)
- Available in a variety of configurations allowing exactly the right cable to be selected for the application
- Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
- Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
- Meets NFPA Standard 79 for industrial machinery*
Specifications
Specifications
Specifications
| Component 1 | 1 X 3 COND |
|---|---|
| Conductor | 24 (19/36) AWG Bare Copper |
| Insulation | 0.022" Wall, Nom. PVC |
| ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING ANDINVERTED | |
| Cabling | 3 COND Cabled |
| Twists: | 8.0 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | REMAY Tape, 25% Overlap, Min. |
| Jacket | 0.025" Wall, Nom.,PVC, Oil Resistant |
| Color(s) | BLACK |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| Shield | Tinned Copper BRAID Shield,85% Coverage, Min. |
| Jacket | 0.035" Wall, Nom.,PVC, Oil Resistant |
| Color(s) | BLACK |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C(static), -5 to 90°C (dynamic) |
| Bend Radius | 8X Cable Diameter(static), 8X Cable Diameter(dynamic) |
| Pull Tension | 17.8 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Ground Capacitance | 50 pF/ft @1 kHz, Nominal |
| Inductance | 0.24 µH/ft, Nominal |
| Conductor DCR | 22.3 ?/1000ft @20°C, Nominal |
