Brand: Alpha Wire
|
SKU:
A86204CY-SNM

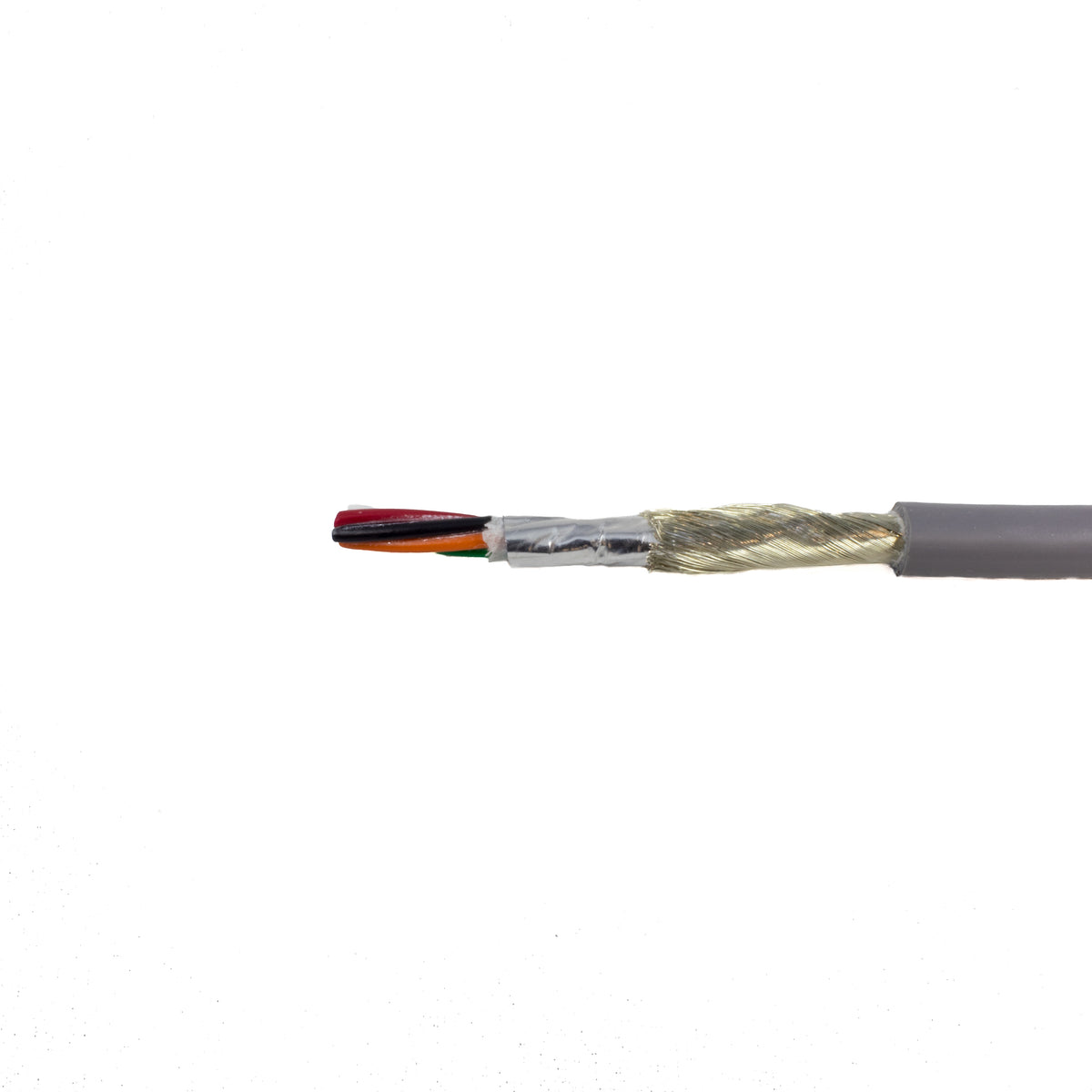

Alpha Wire 86204CY SL001 | 24-4C Xtra-Guard Tc Flex Data Semi Rigid PVC Slate Jacket
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 86204CY SL001 | 24-4C Xtra-Guard Tc Flex Data Semi Rigid...
Regular price
$3.03
Unit price
Brand: Alpha Wire
|
SKU:
A86204CY-SNM
Regular price
$3.03
Unit price
Shipping calculated at checkout.
Description
Description
Alpha Wire 86204CY SL001 | 24-4C Xtra-Guard Tc Flex Data Semi Rigid PVC Slate Jacket
Xtra-Guard ® Flex - Wide variety of flexing applications.
Alpha Wire - 86204CY SL001 - Features
- Long-lasting flex cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
- Rated for up to 14 million flex life cycles (85000 series), up to 6 Million flex life cycles (86000 series)
- Available in a variety of configurations allowing exactly the right cable to be selected for the application
- Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
- Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
- Meets NFPA Standard 79 for industrial machinery
- Product must be used in accordance with the respective AWM style.
Specifications
Specifications
Alpha Wire - 86204CY SL001 - Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 24 (10/34) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Color Code | Alpha Wire Color Code D |
| Cable Assembly | 4 Components Cabled |
| Twists | 9.6 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Shield | Flex Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Drain Wire | 26 (7/3AWG Tinned Copper |
| Single Serve | Tinned Copper,90% Coverage, Nom. |
| Jacket | 0.040" Wall, Nom.,PVC |
| Color(s) | Slate |
