Brand: Alpha Wire
|
SKU:
A86606CY-SL002
Alpha Wire 86606CY SL002 | Xtra-Guard Flex - Wide Variety Of Flexing Applications
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 86606CY SL002 | Xtra-Guard Flex - Wide Variety Of Flexin...
Regular price
$8.10
Unit price
Brand: Alpha Wire
|
SKU:
A86606CY-SL002
Regular price
$8.10
Unit price
Shipping calculated at checkout.
Description
Description

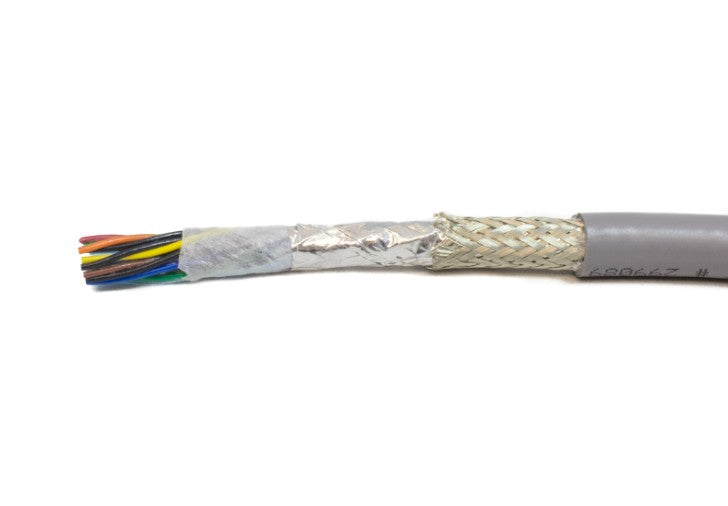

Alpha Wire 86606CY SL002 | Xtra-Guard Flex - Wide Variety Of Flexing Applications
Alpha Wire - 86606CY SL002 - Features
- Long-lasting flex cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
- Rated for up to 14 million flex life cycles (85000 series), up to 6 Million flex life cycles (86000 series)
- Available in a variety of configurations allowing exactly the right cable to be selected for the application
- Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
- Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
Specifications
Specifications
Alpha Wire - 86606CY SL002 - Specifications
| Component 1 | 6 X 1 PAIR |
|---|---|
| Conductor | 24 (10/34) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Color Code | Alpha Wire Color Code A |
| Pair | 2/Cond Cabled Together |
| Twists | 9.6 Twists/foot (min) |
| Shield | Flex Alum/Mylar Tape, 25% Overlap, Min. |
| Drain Wire | 26 (7/34) AWG Tinned Copper |
| Cable Assembly | 6 Components Cabled |
| Jacket | 0.040" Wall, Nom.,PVC |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
