Brand: Alpha Wire
|
SKU:
A87103CY

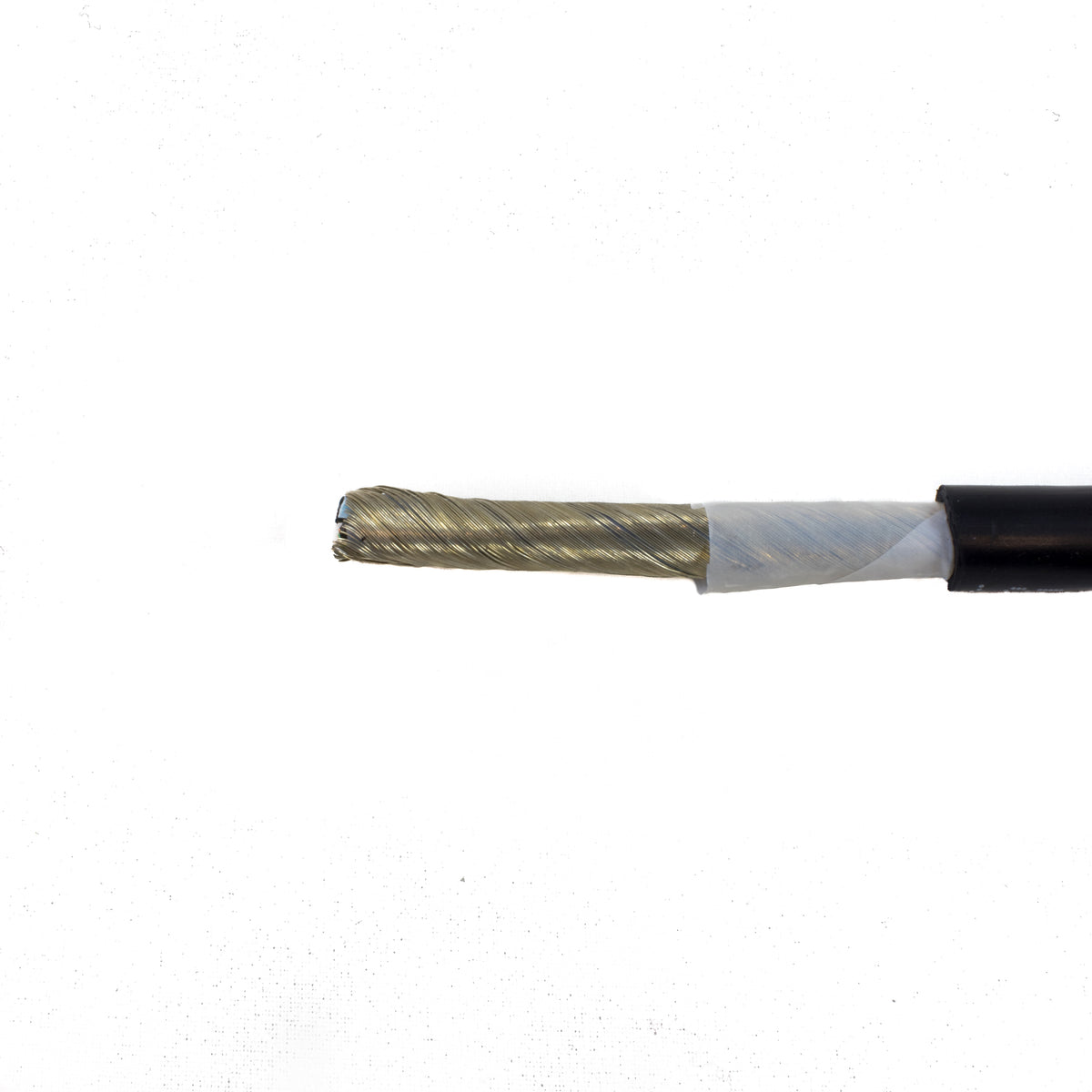

Alpha Wire 87103CY BK199 | Xtra-Guard-Performance-Cable, 3 Conductor, 22 AWG, SPIRAL, 600 V, PU Jacket, HYTREL Insulation, 0.263 Jacket Diameter, 0.05 Jacket Thickness, 19/34 Stranding
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 87103CY BK199 | Xtra-Guard-Performance-Cable, 3 Conducto...
Regular price
$9.45
Unit price
Description
Description
Alpha Wire 87103CY BK199 - FLEX AUTOMATION - 22-3C STR TNC TPE
Key Features
- Long-lasting flex cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
- Rated for up to 14 million flex life cycles (85000 series), up to 6 Million flex life cycles (86000 series)
- Available in a variety of configurations allowing exactly the right cable to be selected for the application
- Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
- Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
- Meets NFPA Standard 79 for industrial machinery*
Specifications
Specifications
Specifications
| Component 1 | 3 X 1 COND |
|---|---|
| Conductor | 22 (19/3AWG Bare Copper |
| Insulation | 0.016" Wall, Nom. TPES(Hytrel) |
| ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING ANDINVERTED | |
| Cable Assembly | 3 Components Cabled |
| Twists: | 3.4 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | PTFE(skived) Tape, 25% Overlap, Min. |
| Shield | Tinned Copper SPIRAL Shield,90% Coverage, Min. |
| Jacket | 0.050" Wall, Nom.,Polyurethane (TPU) |
| Color(s) | BLACK |
| Jacket Separator | PTFE(skived) Tape, 25% Overlap, Min. |
| ALPHA WIRE-* P/N 87103CY XTRAGUARD(R) FLEXIBLE TORSION CABLE - RU AWM20234 --- LLXXXXXX CSA AWM I/II A/B 80C600 VOLTS FT1 CE ROHS (SEQ FOOTAGE)* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 80°C(static), -10 to 80°C (dynamic) |
| Bend Radius | 10X Cable Diameter(static), 15X Cable Diameter(dynamic) |
| Pull Tension | 22 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Ground Capacitance | 61 pF/ft @1 kHz, Nominal |
| Inductance | 0.2 µH/ft, Nominal |
| Conductor DCR | 14 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 4.7 ?/1000ft @20°C, Nominal |
