Brand: Alpha Wire
|
SKU:
1049602
Alpha Wire 87403CY BK199 | 16-3C STR BC TPE STNC Spiral Shield 80°C 600V
Regular price
$10.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 87403CY BK199 | 16-3C STR BC TPE STNC Spiral Shield 80°C...
Regular price
$10.03
Unit price
Description
Description

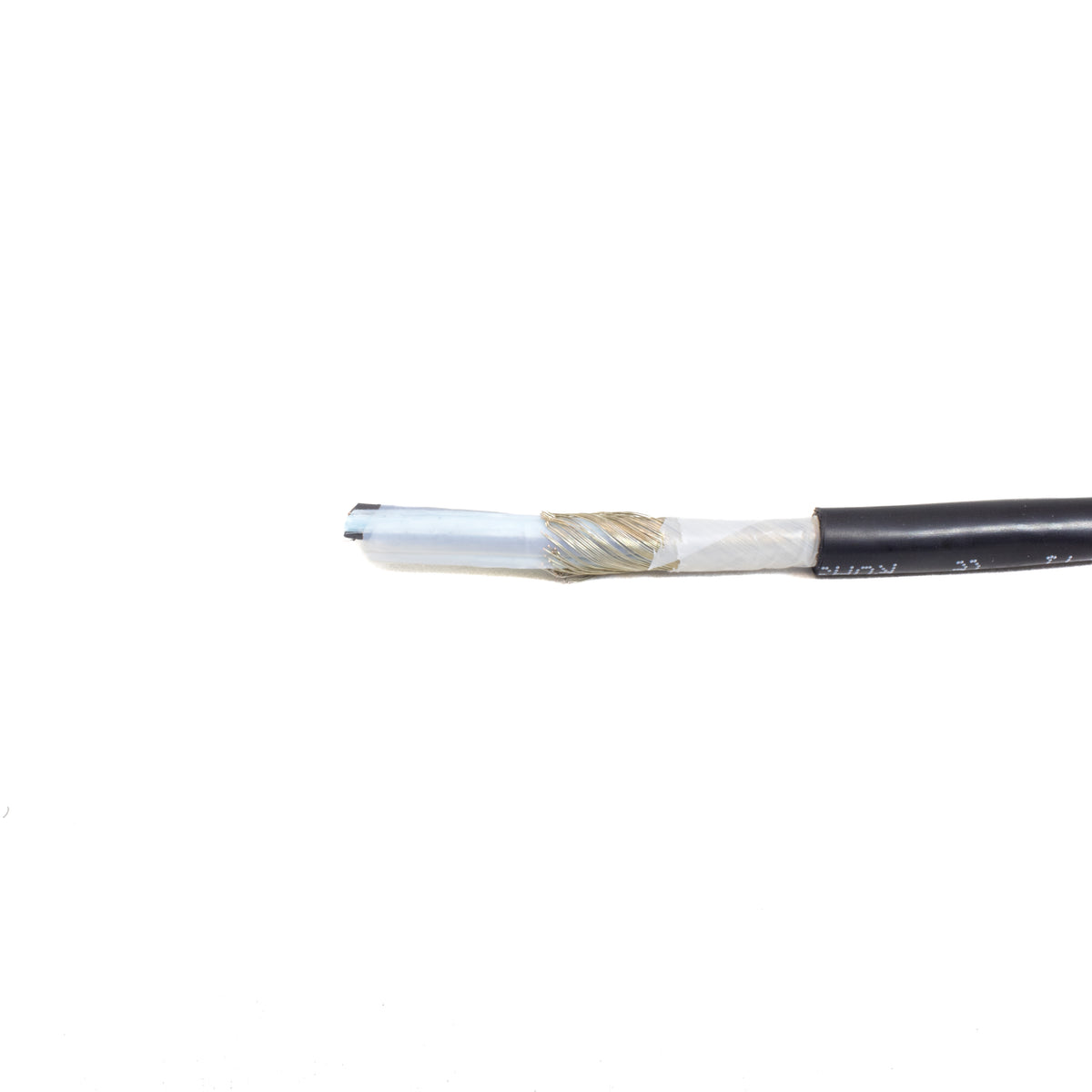

Alpha Wire 87403CY BK199 | 16-3C STR BC TPE STNC Spiral Shield 80°C 600V
Alpha Wire - 87403CY BK199 - Features
- Long-lasting flex cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
- Rated for up to 14 million flex life cycles (85000 series), up to 6 Million flex life cycles (86000 series)
- Available in a variety of configurations allowing exactly the right cable to be selected for the application
- Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
- Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
Specifications
Specifications
Alpha Wire - 87403CY BK199 - Specifications
| Component 1 | 3 X 1 COND |
|---|---|
| Conductor | 16 (19/29) AWG Bare Copper |
| Twists: | 2.5 Twists/foot (min) |
| Temperature Range | -30 to 80°C(static), -10 to 80°C (dynamic) |
| Pull Tension | 63 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
