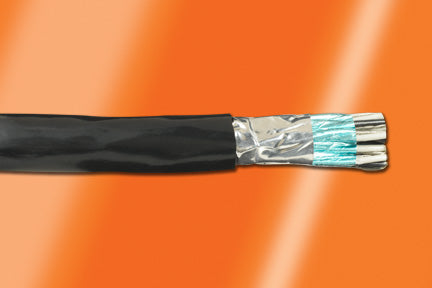

Alpha Wire 882205 SL005 | Communication and Control Cable 22-5C 7x30, Jacket, 300v
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 882205 SL005 | Communication and Control Cable 22-5C 7x3...
Description
Description
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Alpha Wire - 882205 SL005 - Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
Specifications
Specifications
Alpha Wire - 882205 SL005 - Specifications
| Conductor Material | Tinned Copper (TC) |
|---|---|
| Conductor Size | 22 AWG |
| Maximum Operating Temperature | 90 °C |
| Wire Size | 22 AWG |
| Standards | CSA AWM II A/B FT4, UL 2464 |
| Stranding | 7 x 30 |
| Dimensions | 1200.00 in L |
| Minimum Operating Temperature | 80 °C |
| Application | For control processing, communications, instrumentation and audio systems |
| Temperature, Rating | 80 °C |
| Configuration | Conductors |
| Voltage Rating | 300 V |
| Cable Type | Multi-Conductor |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Packaging | Coil |
| Insulation Thickness | 0.01 in. |
| Jacket Color | Silver |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.032 in. |
| Number of Conductors | 5 |
| Outer Diameter | 0.190000 in |
| Manufacturer | ALPHA WIRE |
