Brand: Alpha Wire
|
SKU:
A9008-100

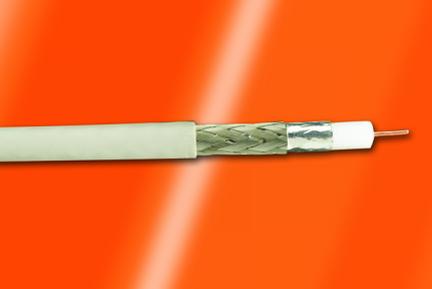

Alpha Wire 9008 BK005 | Coaxial Cable 13 AWG (2.88mm²) RG-8 100.0' (30.48m) 52 Ohms
Regular price
$8.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9008 BK005 | Coaxial Cable 13 AWG (2.88mm²) RG-8 100.0&#...
Regular price
$8.66
Unit price
Description
Description
Coaxial Cable 13 AWG (2.88mm²) RG-8 100.0' (30.48m) 52 Ohms
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 13 (7/21) AWG BC |
| Insulation | 0.0995" Wall, Nom. Polyethylene(PE) |
| Shield | BC BRAID Shield,94% Coverage, Min. |
| Jacket | 0.046" Wall, Nom.,Type I PVC |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N 9008 RG 8/U ROHS* = Factory Code | |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 60°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 59 Lbs, Maximum |
| Voltage Rating | 3700 VRMS |
| Ground Capacitance | 29.5 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 1.9 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 1.29 ?/1000ft @20°C, Nominal |
| Voltage Withstanding | 10 kV, Minimum |
| Corona Extinction | 5 kV, Minimum |
