Brand: Alpha Wire
|
SKU:
A9059B

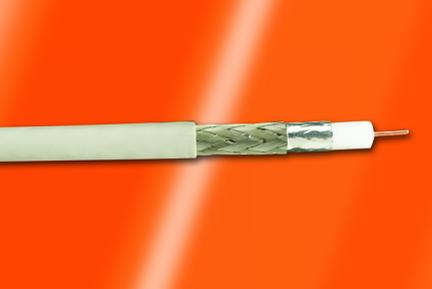

Alpha Wire 9059B BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coax, 23 AWG, Braid, 1700 V, PVC Jacket, 0.242 Jacket Diameter, 0.034 Jacket Thickness, 0.146 Core Diameter, Solid
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9059B BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Co...
Regular price
$3.00
Unit price
Description
Description
Coaxial Cable 23 AWG RG-59B 1000.0' (304.80m) 75 Ohms
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 23 (SOLID) AWG BCW |
| Insulation | 0.0615" Wall, Nom. Polyethylene(PE) |
| Shield | BC BRAID Shield,94% Coverage, Min. |
| Jacket | 0.034" Wall, Nom.,Type IIA PVC |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N 9059B RG 59B/U 1C 23 AWG SHIELDED (UL) TYPE CL2XOR C(UL) TYPE CMH FT1 CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 60°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 11.3 Lbs, Maximum |
| Voltage Rating | 1700 VRMS |
| Ground Capacitance | 20.5 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 51.8 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 2.5 ?/1000ft @20°C, Nominal |
| Voltage Withstanding | 7 kV, Minimum |
| Corona Extinction | 2.3 kV, Minimum |
