Brand: Alpha Wire
|
SKU:
A9059C-2

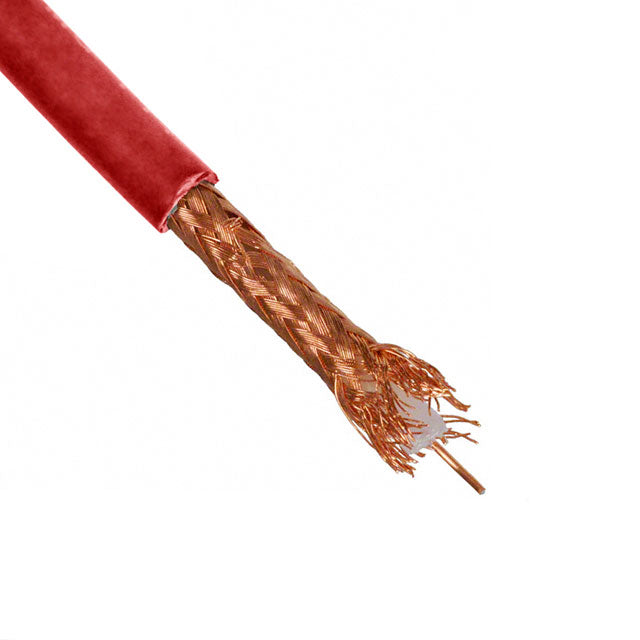

Alpha Wire 9059C RD001 | Coaxial Cable 22 AWG (0.32MM²) RG-59 100.0' (30.48M) 75 Ohms
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9059C RD001 | Coaxial Cable 22 AWG (0.32MM²) RG-59 100.0...
Regular price
$1.46
Unit price
Description
Description
Alpha Wire 9059C RD001 | Coaxial Cable 22 AWG (0.32MM²) RG-59 100.0' (30.48M) 75 OHMS
Specifications
Specifications
Alpha Wire - 9059C RD001 - Specifications
| Cable Type | Coaxial |
|---|---|
| Cable Group | RG-59 |
| Wire Gauge | 22 AWG (0.32mm²) |
| Conductor Strand | Solid |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.242" (6.15mm) |
| Shield Type | Braid |
| Impedance | 75 Ohms |
| Length | 1000.0' (304.80m) |
| Jacket Color | Red |
| Conductor Material | Steel, Copper Coated |
| Dielectric Material | Solid Polyethylene (PE) |
| Dielectric Diameter | 0.146" (3.71mm) |
| Shield Material | Copper, Bare |
| Shield Coverage | 0.95 |
| VoP, Velocity of Propagation | 66 |
| Operating Temperature | -20°C ~ 60°C |
