Brand: Alpha Wire
|
SKU:
A9214

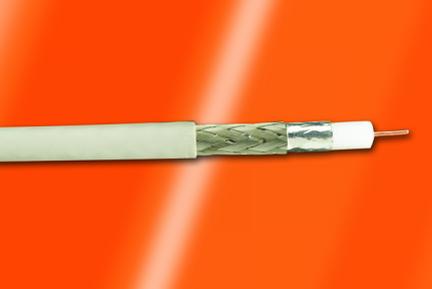

Alpha Wire 9214 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coax, 13 AWG, Braid, 3700 V, PVC Jacket, 0.425 Jacket Diameter, 0.042 Jacket Thickness, 0.285 Core Diameter, 7/0296 Stranding
Regular price
$17.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9214 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coa...
Regular price
$17.14
Unit price
Description
Description
Alpha Wire 9214 BK001 - RG 214 - RG214 13 STR SC PE 95% SC
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 13 (7/.0296) AWG SPC |
| Insulation | 0.098" Wall, Nom. Polyethylene(PE) |
| Shield | SPC BRAID Shield,95% Coverage, Min. |
| Shield | SPC BRAID Shield,95% Coverage, Min. |
| Jacket | 0.042" Wall, Nom.,Type IIA PVC |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N 9214 RG 214/U 1C13 SHIELDED EXXXXX CMX (UL) C(UL)OR AWM STYLE 1354 CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 69 Lbs, Maximum |
| Voltage Rating | 3700 VRMS |
| Inductance | 0.077 µH/ft, Nominal |
| Ground Capacitance | 30.8 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 1.7 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 1.4 ?/1000ft @20°C, Nominal |
| Voltage Withstanding | 10 kV, Minimum |
