Brand: Alpha Wire
|
SKU:
A9217

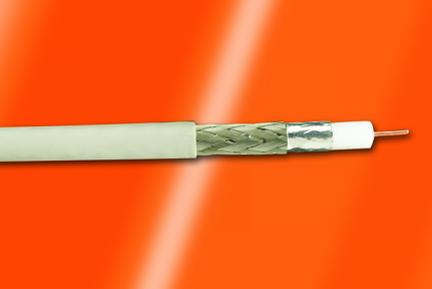

Alpha Wire 9217 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coax, 10 AWG, Braid, 5200 V, PVC Jacket, 0.545 Jacket Diameter, 0.056 Jacket Thickness, 0.37 Core Diameter, 1/106 Stranding
Regular price
$14.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9217 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coa...
Regular price
$14.50
Unit price
Description
Description
Alpha Wire 9217 BK001 - RG 217 - RG217 10 SOL BC PE 95% BC BRD
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 10 (1/.106) AWG BC |
| Insulation | 0.132" Wall, Nom. Polyethylene(PE) |
| Shield | BC BRAID Shield,95% Coverage, Min. |
| Shield | BC BRAID Shield,95% Coverage, Min. |
| Jacket | 0.056" Wall, Nom.,Type IIA PVC |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N 9217 RG 217/U ROHS* = Factory Code | |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 60°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 120 Lbs, Maximum |
| Voltage Rating | 5200 VRMS |
| Ground Capacitance | 30.8 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 0.92 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 0.75 ?/1000ft @20°C, Nominal |
| Voltage Withstanding | 12 kV, Minimum |
| Corona Extinction | 7 kV, Minimum |
