Brand: Alpha Wire
|
SKU:
A9848

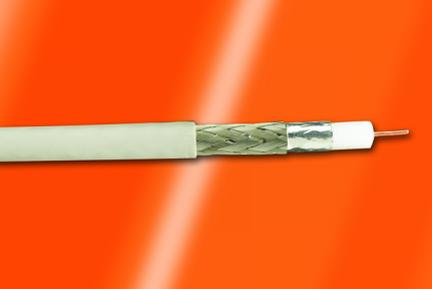

Alpha Wire 9848 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coax, 18 AWG, Braid, 300 V, PVC Jacket, 0.195 Jacket Diameter, 0.028 Jacket Thickness, 0.116 Core Diameter, Solid
Regular price
$2.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9848 BK001 | Manhattan-Electrical-Cables, Coaxial, 1 Coa...
Regular price
$2.88
Unit price
Description
Description
Coaxial Cable 18 AWG (0.90mm²) RG-58 1000.0' (304.80m) 50 Ohms
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 COAX |
|---|---|
| Conductor | 18 (SOLID) AWG BC |
| Insulation | 0.038" Wall, Nom. Polyethylene, Foam |
| Shield | TC BRAID Shield,95% Coverage, Min. |
| Jacket | 0.028" Wall, Nom.,Type I PVC |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N 9848 RG 58/U RU AWM STYLE 1354 CE ROHS* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 60°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 17.4 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Ground Capacitance | 26 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 78 % |
| Conductor DCR | 6.4 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 4.5 ?/1000ft @20°C, Nominal |
| Attenuation, Max dB/100ft | 15 @ 500 MHz, 20.7 @ 1 GHz |
