Brand: Alpha Wire
|
SKU:
A9852C

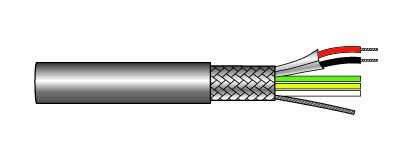

Alpha Wire 9852C SL001 | Manhattan-Electrical-Cables, Coaxial, Composite, 22 AWG, Foil Braid, PVC Jacket, 0.34 Jacket Diameter, 7/30 Stranding
Regular price
$12.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9852C SL001 | Manhattan-Electrical-Cables, Coaxial, Comp...
Regular price
$12.16
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 20 AWG, 22 AWG Foil, Braid 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 3 X 1 PAIR |
|---|---|
| Conductor | 22 (7/30) AWG TC |
| Insulation | 0.017" Wall, Nom. Foam HDPE |
| Pair | 2/Cond Cabled Together |
| Twists: | 9.2 Twists/foot (min) |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Component 2 | 1 X 1 PAIR |
| Conductor | 20 (7/28) AWG TC |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Pair | 2/Cond Cabled Together |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 66 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Characteristic Impedance | 78 ? +/- 5 |
| Inductance | 0.21 µH/ft, Nominal |
| Mutual Capacitance | 16.7 pf/ft @1 kHz, Nominal |
| Ground Capacitance | 29.5 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 78 % |
| Conductor DCR | 16.7 ?/1000ft @20°C, Nominal |
