Brand: Alpha Wire
|
SKU:
A9854C

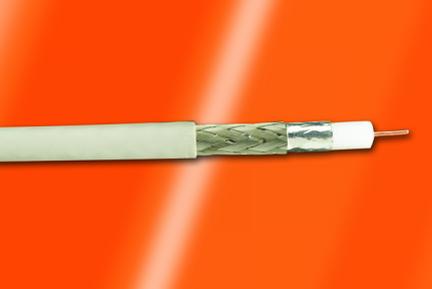

Alpha Wire 9854C SL001 | Manhattan-Electrical-Cables, Coaxial, Composite, 28 AWG, Foil Braid, PVC Jacket, 0.25 Jacket Diameter, 7/36 Stranding
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 9854C SL001 | Manhattan-Electrical-Cables, Coaxial, Comp...
Regular price
$8.10
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG, 28 AWG Foil, Braid 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 3 X 1 PAIR |
|---|---|
| Conductor | 28 (7/36) AWG TC |
| Insulation | 0.0085" Wall, Nom. Polypropylene(PP) |
| Pair | 2/Cond Cabled Together |
| Twists: | 12.0 Twists/foot (min) |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Component 2 | 1 X 1 PAIR |
| Conductor | 24 (7/32) AWG TC |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Pair | 2/Cond Cabled Together |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 18.8 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Characteristic Impedance | 78 ? +/- 5 |
| Mutual Capacitance | 19.7 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 66 % |
| Conductor DCR | 65 ?/1000ft @20°C, Nominal |
| Attenuation, Max dB/100ft | 1.7 @ 1 MHz, 3.5 @ 5 MHz |
