Brand: Alpha Wire
|
SKU:
AF08004KW

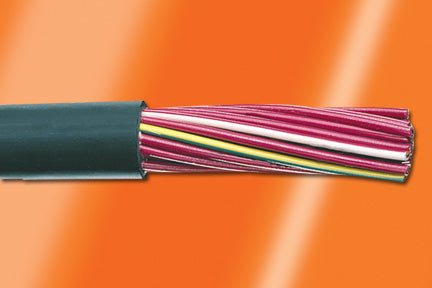

Alpha Wire F08004KW BK199 | 4 Conductor Multi-Conductor Cable Black 8 AWG - 1000.0' (304.8m)
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire F08004KW BK199 | 4 Conductor Multi-Conductor Cable Black...
Regular price
$19.78
Unit price
Description
Description
Alpha Wire F08004KW BK199 - FLEX CONTROL - #4C-8AWG THWN-2 SERIES F
Key Features
- Up to 20 million continuous rolling flex cycles
- 18 – 8 AWG
- 3 – 65 conductors
- PVC/nylon insulation
- Thermoplastic elastomer jacket
- UL Type TC-ER (600 V)
- UL Type PLTC (300 V) (18-12AWG only)
- Sunlight resistant
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 8 (168(7x24)/30) AWG Bare Copper |
| Insulation | 0.032" Wall, Nom. PVC/ 0.006" Wall NYLON |
| ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING ANDINVERTED | |
| Cable Assembly | 4 Components Cabled |
| Twists: | 2.1 Twists/foot (min) |
| Orientation: | Components to be arranged from OUTSIDE LAYER to INSIDE LAYER |
| Core Wrap | REMAY Tape, 25% Overlap, Min. |
| Jacket | 0.065" Wall, Nom.,TPE |
| Color(s) | BLACK |
| ALPHA WIRE-* P/N F08004KW 4C 8 AWG (8.51mm2) THWN-2 SERIES F (UL) TYPE TC-ER 90C WET/DRY 600VOIL RES I/II -40C SUN RES OR C(UL) CIC CONTROL/TC8 AWG -40C 90C WET 90C DRY PVC/NYLON INSFT4 OR CRU AWM I/II A/B 90C 600V FT4CE ROHS (DATE CODE) (SEQ FOOTAGE)* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C(static), -5 to 90°C (dynamic) |
| Bend Radius | 6X Cable Diameter(static), 8X Cable Diameter(dynamic) |
| Pull Tension | 528 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 32 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.16 ?H/ft, Nominal |
| Conductor DCR | 0.66 ?/1000ft @20°C, Nominal |
