Brand: Alpha Wire
|
SKU:
M13504

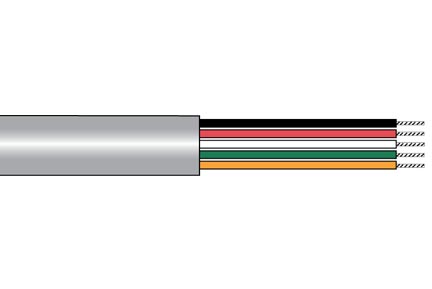

Alpha Wire M13504 SL001 | Communication & Control Cable, 18AWG, 4 Conductor, (19/30) Stranding, Unshielded, PVC, 1000 FT, Slate
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire M13504 SL001 | Communication & Control Cable, 18AWG,...
Regular price
$1.46
Unit price
Description
Description
4 Conductor Multi-Conductor Cable Slate 18 AWG 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 18 (19/30) AWG TC |
| Insulation | 0.018" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code O |
| Cable Assembly | 4 Components Cabled |
| Twists: | 4.0 Twists/foot (min) |
| Jacket | 0.032" Wall, Nom.,PVC |
| Color(s) | SLATE |
| ALPHA WIRE-* P/N M13504 4C 18 AWG EXXXXXX 75C CMG (UL) C(UL) ORAWM STYLE 2598 CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 60 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 6 ?/1000ft @20°C, Nominal |
