Brand: Alpha Wire
|
SKU:
M2487

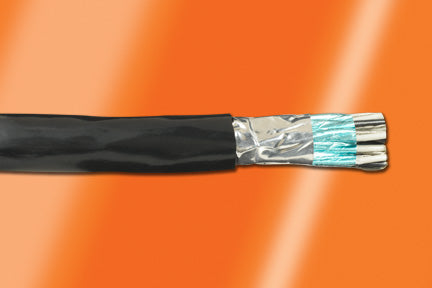

Alpha Wire M2487 SL001 | 4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 28 AWG Foil, Braid 1000.0' (304.8m)
Regular price
$2.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire M2487 SL001 | 4 (2 Pair Twisted) Conductor Multi-Pair Ca...
Regular price
$2.88
Unit price
Description
Description
4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 28 AWG Foil, Braid 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 PAIR |
|---|---|
| Conductor | 28 (7/36) AWG TC |
| Insulation | 0.0145" Wall, Nom. Polyethylene, Foam |
| Color Code | Alpha Wire Color Code M |
| Pair | 2/Cond Cabled Together |
| Twists: | 9.6 Twists/foot (min) |
| Cable Assembly | 2 Components Cabled |
| Twists: | 6.0 Twists/foot (min) |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Drain Wire | 28 (7/36) AWG TC |
| Braid | TC,65% Coverage, Min. |
| Jacket | 0.032" Wall, Nom.,PVC |
| Color(s) | SLATE |
| Ripcord | 1 End 810 Denier Nylon |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 9.5 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Mutual Capacitance | 11 pf/ft @1 kHz, Nominal |
| Ground Capacitance | 20 pf/ft @1 kHz, Nominal |
| Velocity of Propagation | 78 % |
