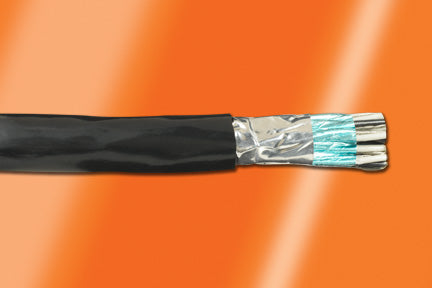

Alpha Wire M5394 SL001 | Communication and Control Cable
Regular price
$3.03
Unit price
Brand: Alpha Wire
|
SKU:
M5394-SNM-ALT
Regular price
$3.03
Unit price
Description
Description
Alpha Wire M5394 SL001 | 18-4C STR TNC SR-PVC Oa Foil +Brd Shielded PVC Jacket Gray CM 80C300V
Alpha Wire - M5394 SL001 - Features
- Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Alpha Wire - M5394 SL001 - Specifications
| Component 1 | 4 x 1 COND |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code D |
| Cable Assembly | 4 Components Cabled |
| Twists | 4.4 twists/ft. (min.) |
| Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| Core Wrap | Clear Mylar Tape, 25% Overlap (min.) |
| Shield | Alum/Mylar Tape, 25% Overlap (min.) |
| Foil Direction | Foil Facing Out |
| Drain Wire | 18 (16/30) AWG Tinned Copper |
| Braid | Tinned Copper, 70% Coverage, Nom. |
| Jacket | 0.032" Wall, Nom., PVC |
| Color(s) | SLATE |
| Ripcord | 1 End 810 Denier Nylon |
| 1000 FT | 18 x 9 x 8 Continuous Length |
| 500 FT | 12 x 10.5 x 5 Continuous Length |
| 100 FT | 10.5 x 5 x 3.5 Continuous Length |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 67 lbs. max. |
| Voltage Rating | 300 VRMS |
| Capacitance | 52 pF/ft. @1 kHz, Nominal Conductor-to-Conductor |
| Ground Capacitance | 94 pF/ft. @1 kHz, Nominal |
| Inductance | 0.18 ?H/ft., Nominal |
| Conductor DCR | 7 ?/1000ft. @20°C, Nominal |
| OA Shield DCR | 2.9 ?/1000ft. @20°C, Nominal |
