Alpha Wire SW20 NA005 | 1/8" Nylon Spiral Wrap-40c to 120c ROH...
Description
Description

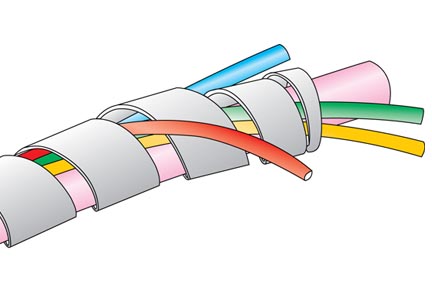

Alpha Wire’s spiral wrap tubing simplifies wire harnessing, cabling, and bundling with no installation tool needed. It wraps tightly to the wire and cable being bundled, yet is flexible and simple to apply. All types maintain flexibility even when bent around sharp edges. Breakouts or tap-off connections may be made through the openings of the wrap. Alpha Wire's SW spiral wrap is constructed from several semi-rigid tubing materials and then cut on a continual spiral.
Specifications
Specifications
Alpha Wire - SW20 NA005 - Specifications
| Product | Spiral Wrap Tubing |
|---|---|
| Material | Nylon |
| Color | Natural |
| Flamability | Self Extinguishing |
| Outside Diameter | 0.125" +/- 0.010" |
| Inside Diameter | 0.095", Nominal |
| Wall Thickness | 0.015", Nominal |
| Pitch | 0.187",Nominal |
| Pitch Direction | Right Hand |
| Temperature Rating | -40 to +121C |
| Tensile Strength | 12,000 PSI |
