Brand: Alpha Wire
|
SKU:
3ACD-0404FB-A

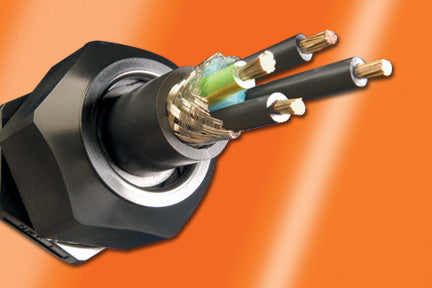

Alpha Wire V16004 BK199 | Industrial-Series-Cable, IndustrialSeriesV, 4 Conductor, 4 AWG, Foil Braid, PVC Jacket, XLPE Insulation, 1.157 Jacket Diameter, 133/7x19/25 Stranding, Motors and Drives
Regular price
$40.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire V16004 BK199 | Industrial-Series-Cable, IndustrialSeries...
Regular price
$40.49
Unit price
Brand: Alpha Wire
|
SKU:
3ACD-0404FB-A
Regular price
$40.49
Unit price
Shipping calculated at checkout.
Description
Description
Alpha Wire V16004 BK199 - VFD - 4-4C STR TNC XLP TYPE TC VFD
Key Features
- 4-conductor and 3-conductor (NEW!) available
- 16 to 4/0 AWG
- Cross-linked polyethylene insulation
- PVC jacket
- Small diameter
- Low capacitance for improved signal transmission
- UL Type TC-ER (600 V)
- CSA I/II A/B 1000V FT4
- Direct burial
- Sunlight resistant
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 4 (133(7x19)/25) AWG Tinned Copper |
| Insulation | 0.062" Wall, Nom. XLPE |
| Cable Assembly | 4 Components Cabled |
| Twists: | 0.9 Twists/foot (min) |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 4 x 10 (105/30) AWG Tinned Copper |
| Braid | Tinned Copper,85% Coverage, Min. |
| Jacket | 0.093" Wall, Nom.,PVC |
| Color(s) | BLACK |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| ALPHA WIRE-* P/N V16004 4C4 SHIELDED (UL) 1000V FLEXIBLE MOTOR SUPPLY CABLE OR WTTC 90C WET/DRY OR 600V TC-ER XHHW-2 CDRS XLPE/PVC 90C WET/DRY OR 4C4 C(UL) 600V CIC TC 90C WET/DRY FT4 (-25C) --- P-07-KA080006-MSHA --- LLXXXXXX CSA AWM I/II A/B 1000V 90C FT4 CE ROHS (SEQ FOOTAGE) * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 1692 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Direct Burial | Yes |
| Cable Weight | 1130 Lbs/1000Ft |
| Voltage Rating | 1000 VRMS |
| Characteristic Impedance | 50 ? |
| Inductance | 0.161 µH/ft, Nominal |
| Mutual Capacitance | 37 pf/ft @1 kHz, Nominal |
