Brand: Alpha Wire
|
SKU:
2ACD-1404FB-A

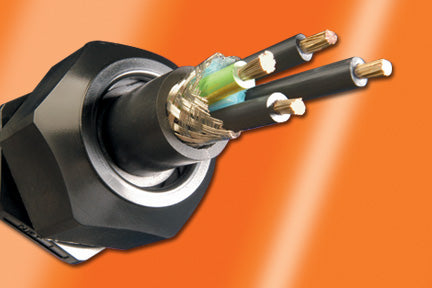

Alpha Wire V16014 BK199 | Industrial-Series-Cable, IndustrialSeriesV, 4 Conductor, 14 AWG, Foil Braid, PVC Jacket, XLPE Insulation, 0.584 Jacket Diameter, 41/30 Stranding, Motors and Drives
Regular price
$9.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire V16014 BK199 | Industrial-Series-Cable, IndustrialSeries...
Regular price
$9.54
Unit price
Brand: Alpha Wire
|
SKU:
2ACD-1404FB-A
Regular price
$9.54
Unit price
Shipping calculated at checkout.
Description
Description
Alpha Wire V16014 BK199 - VFD - 14-4C STR TNC XLP TYPE TC VFD
Key Features
- 4-conductor and 3-conductor (NEW!) available
- 16 to 4/0 AWG
- Cross-linked polyethylene insulation
- PVC jacket
- Small diameter
- Low capacitance for improved signal transmission
- UL Type TC-ER (600 V)
- CSA I/II A/B 1000V FT4
- Direct burial
- Sunlight resistant
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 14 (41/30) AWG Tinned Copper |
| Insulation | 0.046" Wall, Nom. XLPE |
| Separator | Paper Tape, 10% Overlap, Min. |
| Cable Assembly | 4 Components Cabled |
| Twists: | 2.0 Twists/foot (min) |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 14 (41/30) AWG Tinned Copper |
| Braid | Tinned Copper,85% Coverage, Min. |
| Jacket | 0.065" Wall, Nom.,PVC |
| Color(s) | BLACK |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| ALPHA WIRE-* P/N V16014 4C14 SHIELDED (UL) 1000V FLEXIBLE MOTORSUPPLY CABLE OR WTTC 90C WET/DRY OR 600V TC-ERXHHW-2 CDRS XLPE/PVC 90C WET/DRYOR 4C14 C(UL) 600V CIC TC 90C WET/DRY FT4 (-25C)--- P-07-KA080006-MSHA --- LLXXXXXX CSA AWM I/IIA/B 1000V 90C FT4 CE ROHS (SEQ FOOTAGE)* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| EU Directive 2002/95/EC(RoHS): | All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Temperature Range | -40 to 90°C,? |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 175 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Direct Burial | Yes |
| Cable Weight | 225 Lbs/1000Ft |
| Voltage Rating | 600 VRMS |
| Characteristic Impedance | 80 O |
| Inductance | 0.213 µH/ft, Nominal |
| Mutual Capacitance | 23 pf/ft @1 kHz, Nominal |
