Brand: Altronix
|
SKU:
240602

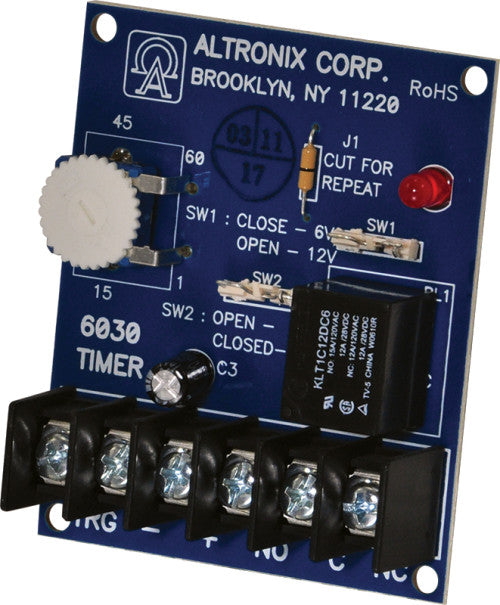

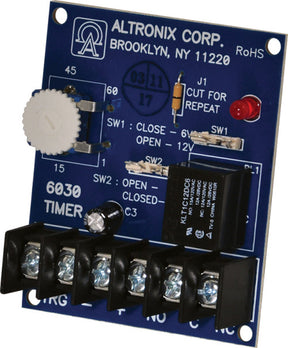

Altronix 6030 | Timer, Multi-Purpose, 6/12VDC 1 Second to 60 Minutes, Board
Regular price
$22.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix 6030 | Timer, Multi-Purpose, 6/12VDC 1 Second to 60 Minute...
Regular price
$22.42
Unit price
Description
Description
The 6030 programmable timer is suitable for most functions that require a timed operation e.g. Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, Pulser / Flasher, etc.
Main Features
- Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
- Repeat (flasher/pulse) mode.
Specifications
Specifications
Dimensions (approximate)
- 2.5"W x 3"L x 0.75"H (63.5 mm W x 76.2 mm L x 19.05 mm H).
Input
- 6VDC or 12VDC operation is selectable.
Relay
- Form "C" relay contacts are 8A at 120VAC/28VDC.
- Current draw stand by 3mA relay energizes at 75mA.
- Relay activates at the end of the timing cycle.
Visual Indicators
- LED indicates relay is energized.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 0.98 Lbs. (0.44 kg). |
|---|---|
| Shipping Weight | 1.2 Lbs. (0.54 kg). |
