Brand: Altronix
|
SKU:
231064

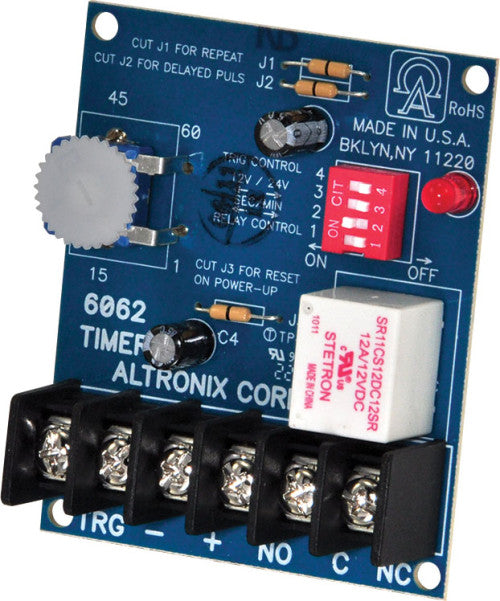

Altronix 6062 | Timer, Multi-Purpose, 12/24VDC 1 Second to 60 Minutes, Board
Regular price
$30.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix 6062 | Timer, Multi-Purpose, 12/24VDC 1 Second to 60 Minut...
Regular price
$30.02
Unit price
Description
Description
6062 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher.
Main Features
- Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
- Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
- Built-in reset feature which cancels timing cycle.
- Repeat (flasher/pulse) mode.
Specifications
Specifications
Dimensions (approximate)
- 2.5"W x 3"L x 0.75"H (63.5 mm W x 76.2 mm L x 19.05 mm H).
Input
- 12VDC or 24VDC operation is selectable.
Current Draw
- Stand-by: 3mA, Relay energized: 40mA.
Relay
- Selectable relay activation at the start or end of the timing cycle.
- One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
Visual Indicators
- LED indicates relay is energized.
Weights (approximate)
| Product Weight | 0.98 Lbs. (0.44 kg). |
|---|---|
| Shipping Weight | 1.2 Lbs. (0.54 kg). |
