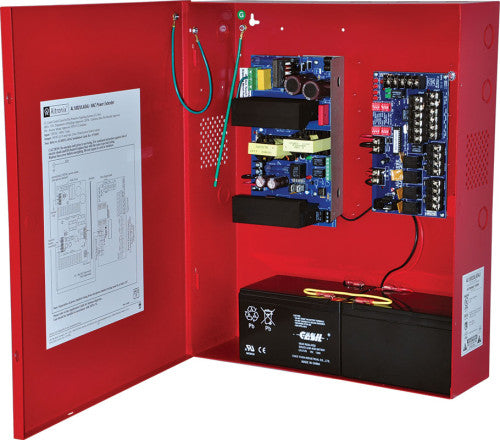

Altronix AL1002ULADAJ | NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 10A, 120VAC, Red BC600 Enclosure

$660.25

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL1002ULADAJ is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/12AH Batteries.
Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
1/2" and 3/4" combination knockouts.

Input

Voltage:
120VAC, 60Hz, 5A.
Two (2) Class A or two (2) Class B inputs.
Two (2) NC dry contact trigger inputs.
Input Ratings (INP1 and INP2):
8-30VDC 6.5mA max from FACP.
12V 6.5mA, 24V 6.5mA from FACP.

Output

Voltage:
24VDC power-limited outputs.
Current:
10A max. total alarm current.
2.5A max. current per output.
Auxiliary:
1A.
Other:
Thermal and short circuit protection with auto reset.
Filtered and regulated outputs.
Programmable Supervised Indicating Circuit Outputs:
Four (4) Class B, or Two (2) Class A, or
One (1) Class A and Two (2) Class B.

Back-up Battery (not included)

Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.

Indicators (LED)

AC Power (Green): Input voltage is present.
DC Output (Red): Powered.
Logic Board (Red and Green): Output status.

Weights (approximate)

Product Weight	16.65 Lbs. (7.55 kg).
Shipping Weight	18.9 Lbs. (8.57 kg).

Agency Listings

UL Listed For: Control Units and Accessories for Fire Alarm Systems (UL864)	https://iq.ulprospector.com/en/profile?e=152861
CSFM - California State Fire Marshal Approved	https://www.altronix.com/library/pdf/csfm_files/1335-0110.PDF
