Brand: Altronix
|
SKU:
552823

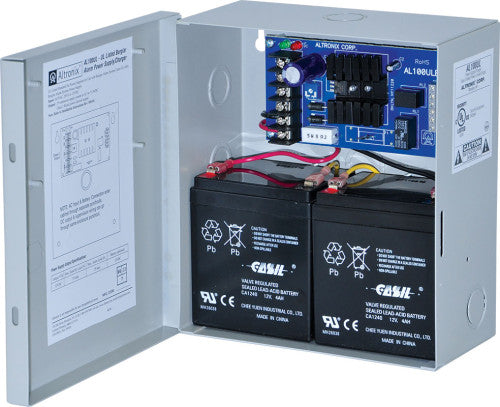

Altronix AL100UL | Linear Power Supply/Charger, Single Class 2 Output, 12VDC @ .75A, 16.5VAC, BC100 Enclosure
Regular price
$136.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL100UL | Linear Power Supply/Charger, Single Class 2 Outp...
Regular price
$136.05
Unit price
Description
Description
Altronix AL100UL linear power supply/charger converts a low voltage input into a 12VDC output.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/4AH Batteries.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 16.5VAC, 20VA from UL Listed, Class 2 transformer (sold separately).
Output
- 12VDC output.
- 750mA supply current.
- Class 2 Rated power limited output.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Low battery disconnect prevents batteries from deep discharge.
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 6.4 Lbs. (2.9 kg). |
|---|---|
| Shipping Weight | 6.9 Lbs. (3.13 kg). |
Agency Listings
| UL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603) | https://iq.ulprospector.com/en/profile?e=2076 |
|---|---|
| cUL Listed For: CSA Standard C603-M1988, Burglar Alarm System | https://iq.ulprospector.com/en/profile?e=2102 |
