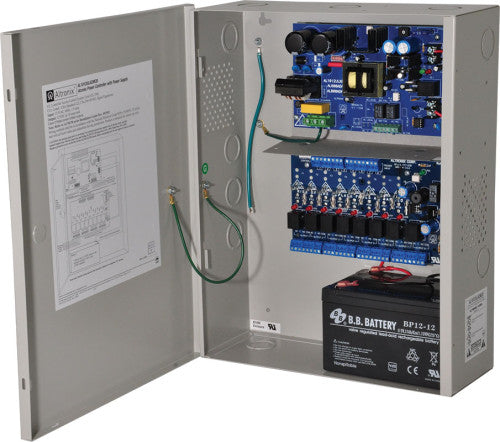

Altronix AL1012ACMCB220 | Access Power Controller with Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 12VDC @ 10A, FAI, 220VAC, BC400 Enclosure
Regular price
$486.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AL1012ACMCB220 | Access Power Controller with Power Supply...
Regular price
$486.97
Unit price
Description
Description
Altronix AL1012ACMCB220 | Access Power Controller with Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 12VDC @ 10A, FAI, 220VAC, BC400 Enclosure
AL1012ACMCB220 converts a nominal 220VAC 50/60Hz input into eight (8) independently controlled 12VDC Fail-Safe and/or Fail-Secure outputs with a total of 10A continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
AL1012ACMCB220 converts a nominal 220VAC 50/60Hz input into eight (8) independently controlled 12VDC Fail-Safe and/or Fail-Secure outputs with a total of 10A continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Altronix - AL1012ACMCB220 - Features and Specifications
- INPUT
- Nominal 220VAC (range 198VAC - 256VAC) 50/60Hz, rated @ 1.0A.
- Power supply input options:
- a) One (1) common power input for ACM8CB and lock power (factory installed).
- b) Two (2) isolated power inputs - One (1) to power the ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a max. of 10A total).
- Eight (8) Access Control System trigger inputs.
- Input options:
- a) Eight (8) normally open (NO) inputs.
- b) Eight (8) open collector inputs.
- c) Any combination of the above.
- OUTPUT
- 12VDC @ 10A supply current.
- Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs (auto-resettable).
- Eight (8) auxiliary power outputs (unswitched)
- PTCs are rated @ 2.0A.
- Filtered and electronically regulated outputs (built-in power supply).
- ACM8CB board main fuse is rated at 10A.
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
- Fire Alarm disconnect input options:
- a) Normally open (NO) or normally closed (NC) dry contact input.
- b) Polarity reversal input from FACP signaling circuit.
- Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).
- Short circuit and thermal overload protection.
Specifications
Specifications
Altronix - AL1012ACMCB220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to one (1) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Altronix - AL1012ACMCB220 - Visual Indicators
- Red LEDs indicate outputs are triggered (relays energized).
- Green LED indicates FACP disconnect is triggered.
- AC input and DC output LED indicators.
Altronix - AL1012ACMCB220 - Temperature
- Operating 0° C to 49° C (32° to 120°F).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 61 BTU/Hr.
Altronix - AL1012ACMCB220 - Specifications
| UNSPSC Code | 46171500 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - AL1012ACMCB220 - Weights (approximate)
| Product Weight: | 10.7 Lbs. (4.85 kg). |
|---|---|
| Shipping Weight | 12 Lbs. (5.44 kg). |
