Brand: Altronix | SKU: 392966

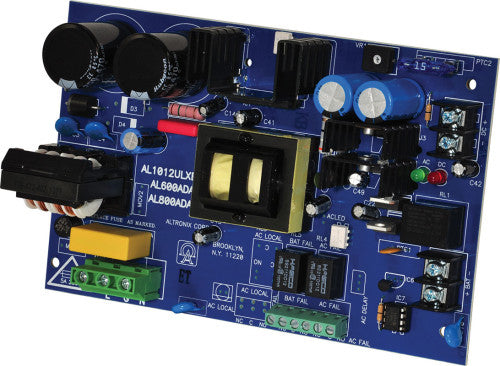

Altronix AL1012ULXB | Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board

$263.20

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL1012ULXB UL Listed Sub-Assembly power supply/charger converts a 115VAC, 60Hz input into a single 12VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Specifications

Dimensions (approximate)

4.5"W x 7.5"L x 2.25"H (114.3 mm W x 190.5 mm L x 57.15 mm H).

Input

Input 115VAC, 60Hz, 2.6A.
Input fuse rated @ 5A/250V.

Output

12VDC output.
10A continuous supply current.
Output fuse rated @ 15A/32V.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	0.75 Lbs. (0.34 kg).
Shipping Weight	0.9 Lbs. (0.41 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1628
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment	https://iq.ulprospector.com/en/profile?e=152141
