Brand: Altronix | SKU: 360224

Altronix AL1012ULXPD8CB | Power Supply Charger, 8 PTC Class 2 Outputs, 12VDC @ 10A, 115VAC, BC400 Enclosure

$385.25

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

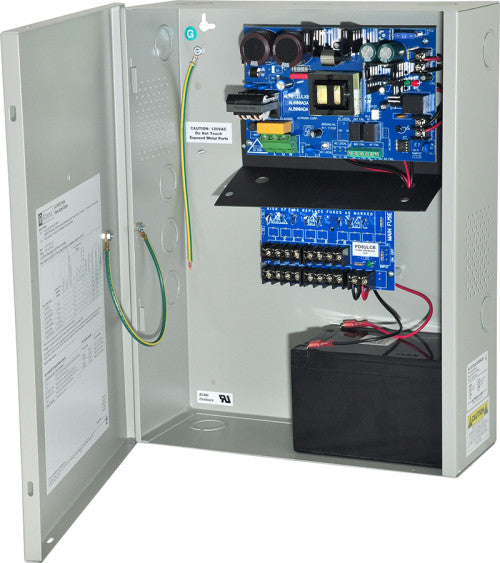

AL1012ULXPD8CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 12VDC Class 2 Rated power limited outputs.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to one (1) 12VDC/12AH Batteries.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.

Input

Input 115VAC, 60Hz, 1.9A.
Input fuse rated @ 5A/250V.

Output

12VDC output.
10A continuous supply current.
Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	9.1 Lbs. (4.13 kg).
Shipping Weight	11.4 Lbs. (5.17 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1521
cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment	https://iq.ulprospector.com/en/profile?e=152141
